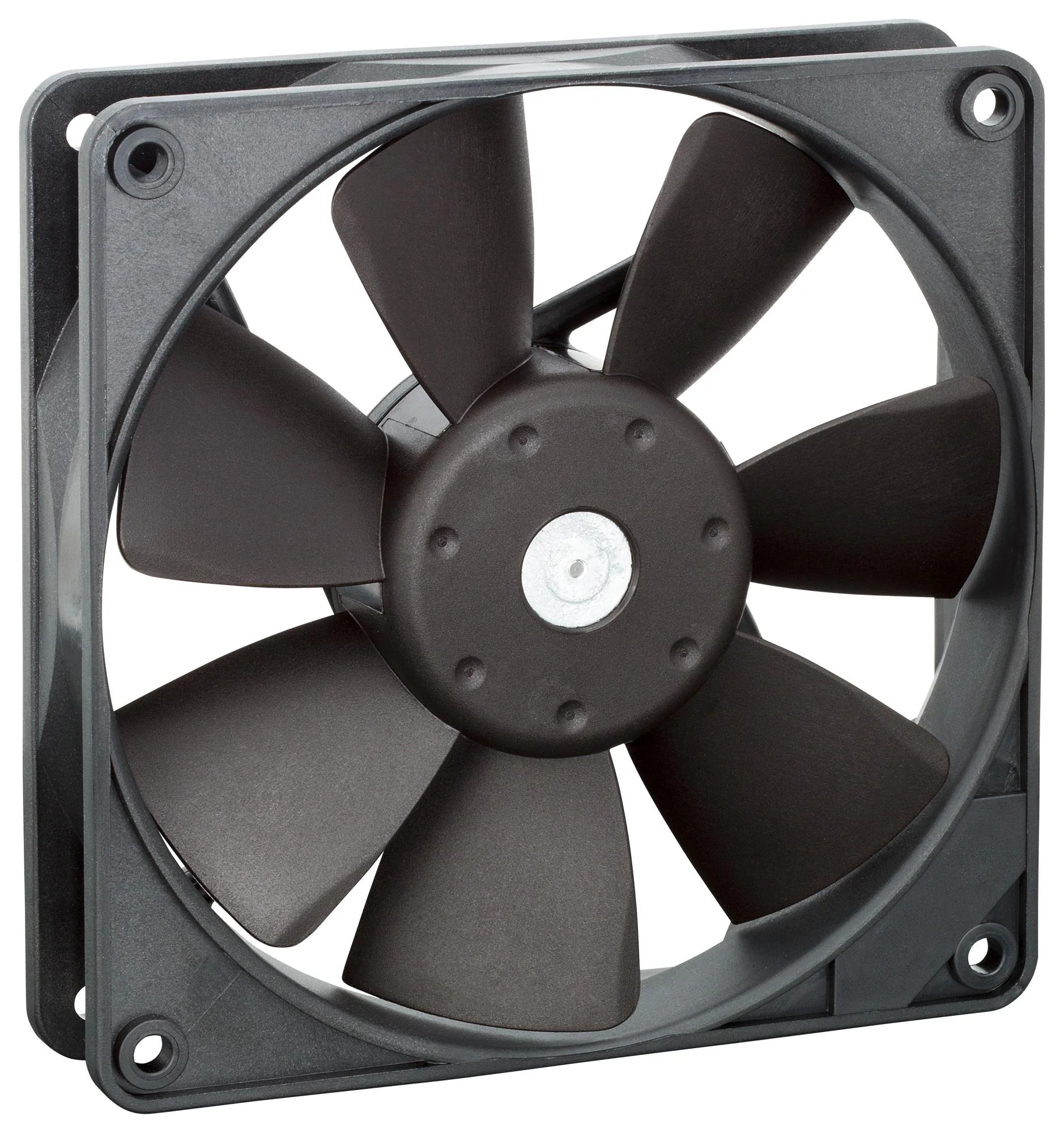

EBM-PAPST 4412F/2 DC Axial Fan, 12 V, Square, 119 mm, 25 mm, Ball Bearing, 100.1 CFM
ebm-papst "tachometer" fans allow external monitoring via a signal which is generated from a sensor integrated within the fans electronics.Ā Speed-proportional, square-wave signals are created in accordance of the motor speed.
- Conveys current fan speed via an integrated sensor
- Open-collector signal output
- 3 wire model
- White speed signal wire
Product details
| Supply Voltage VDC: 12V |
| Fan Frame Type: Square |
| Fan Frame Size: 119mm |
| External Depth: 25mm |
| Bearing Type: Ball Bearing |
| Air Flow - CFM: 100.1CFM |
| Noise Rating: 43dBA |
| Power Rating: 5.3W |
| Rated Speed: 2900rpm |
| Power Connection Type: 3 Lead Wires, Sensor Output |
| Current Rating: - |
| IP Rating: IP20 |
| Air Flow - m3/min: 2.834mĀ³/min |
| Product Range: 4400F |
Other details
| Brand | EBM-PAPST |
| Part Number | 4412F/2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
