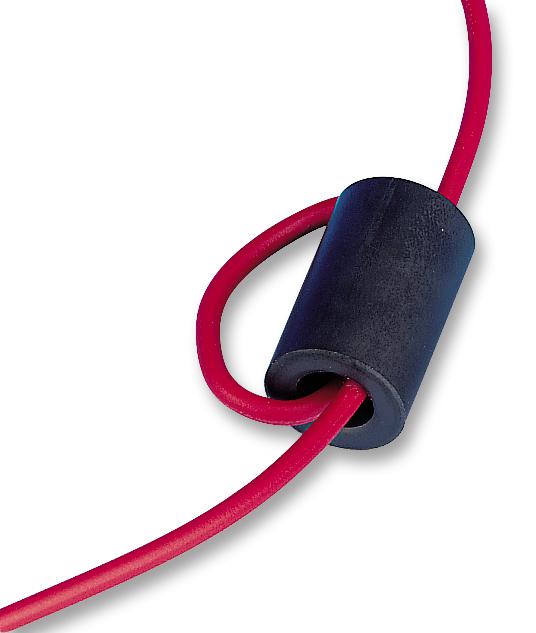

Ferroxcube CST19/11/12-3S4 CST19/11/12-3S4 Ferrite Core Cylindrical 75 ohm 11.5 mm Length 10.6 ID 19 OD

The CST19/11/12-3S4 is a cable shield tubular Ferrite Core for EMI suppression and it is available in grade 3S4. This EMI-suppression cable shield core provides attenuation of RFI over a wide frequency range and reduces the need for more complex shielding measures PCB re-designs.

• UL94V-0 Flammability

Applications

Industrial, RF Communications

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Outer Diameter	19mm
Length	11.5mm
Inner Diameter	10.6mm
Frequency Min	-
Frequency Max	-
Impedance @ 100MHz	75ohm
Product Range	-

Other details

Brand	FERROXCUBE
Part Number	CST19/11/12-3S4
Quantity	Each
Technical Data Sheet EN
