IDX System Technology A-Vmicro2PD Micro Dual V-Mount Hot-Swap Adapter
IDX System Technology A-VMICRO2PD Overview
Run your power-hungry DSLR or video camera and accessories using two Imicro batteries and the A-Vmicro2PD Dual V-Mount Hot-Swap Adapter from IDX System Technology. Designed for using two IDX Imicro V-mount batteries, the A-Vmicro2PD enables you to replace each battery as it is depleted while your components remain running. This plate can be used with an IDX V-mount charger to charge the batteries. The batteries charge and discharge sequentially, automatically swapping to the next battery when the first battery's charging process is complete.

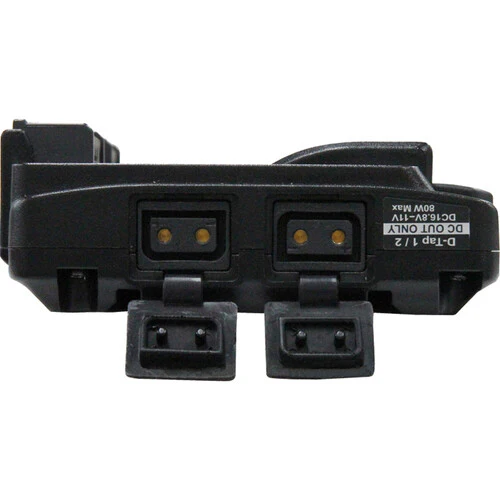

- The A-Vmicro2PD adapter features one 45W USB-C PD output and one unregulated D-Tap output with a maximum output of 80W for powering your camera, lights, or accessories.

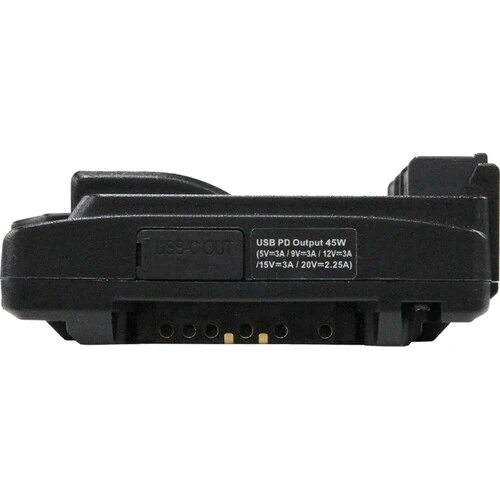

- 45W USB PD output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, or 20V/2.25A.
- IDX Imicro-50, 98, and 150 V-mount batteries
- IDX V-mount chargers
Items Included
- IDX System Technology A-Vmicro2PD Micro Dual V-Mount Hot-Swap Adapter
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
IDX System Technology A-VMICRO2PD Specs
| Battery Capacity |
154 Wh
|
| Maximum Load |
80 W, 14 A
|
| Power Output |
V-Mount: 11 to 16.8 VDC
D-Tap: 11 to 16.8 VDC USB-C: 5 to 20 VDC |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Battery Capacity |
154 Wh
|
| Maximum Load |
80 W, 14 A
|
| Power Output |
V-Mount: 11 to 16.8 VDC
D-Tap: 11 to 16.8 VDC USB-C: 5 to 20 VDC |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
2
|
| Hot-Swap Support |
Yes
|
| Indicator |
LED
|
| Dimensions |
5.6 x 3.9 x 1.2" / 141 x 98 x 30Ā mm
|
| Weight |
9.9Ā oz / 280Ā g
|
| Package Weight |
0.785 lb
|
| Box Dimensions (LxWxH) |
7 x 4.9 x 2"
|
