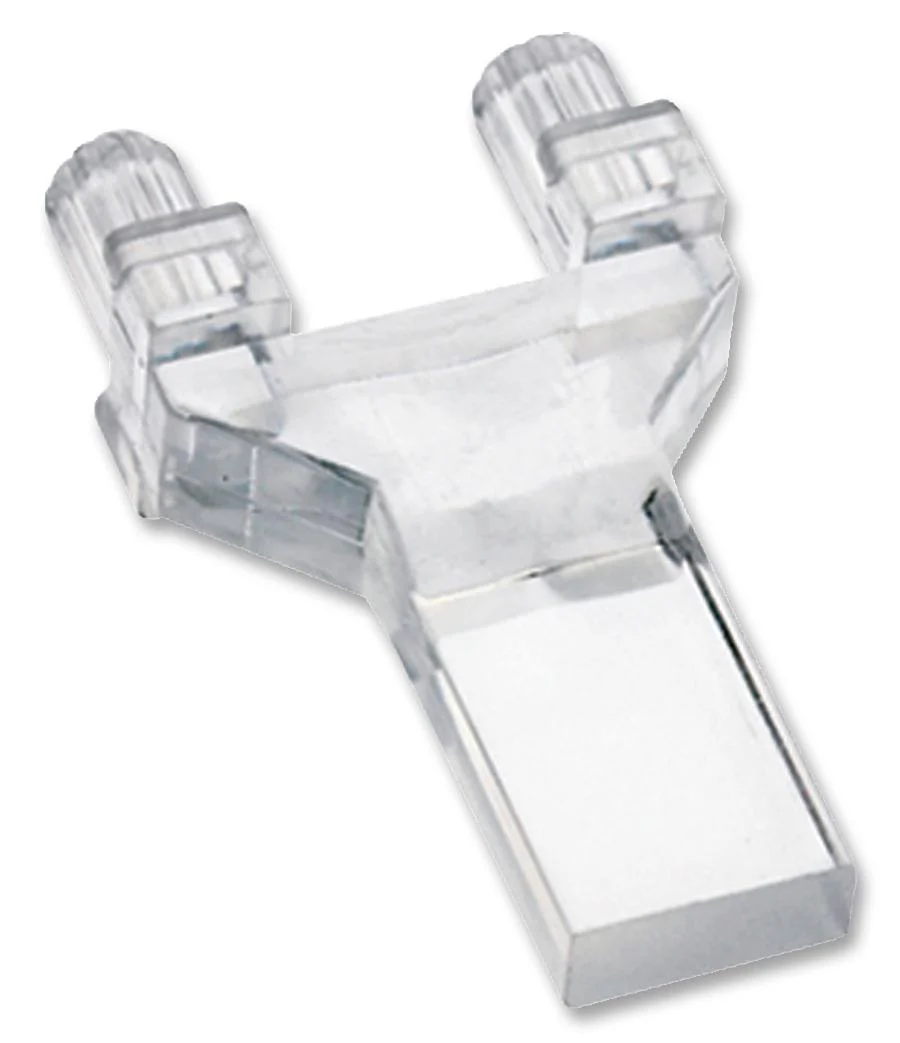

Mentor 1274.1011 1274.1011 Light Pipe Upright 15 mm 1 Pipes Rectangular PC Board Transparent

The 1274.1011 is a 1-fold Vertical PCB Mount Light Guide, held in place on the printed board via two press-in lugs. The light guide is used in conjunction with SMD LEDs. It is used in electronic products that call for light to be emitted from a panel that is positioned parallel to the circuit board. They are fitted to the circuit board by using push-fit lugs. Light guides form a key function in the human interface with a product, so their appearance and optical quality have a huge influence on aesthetics and overall perceptions. The options of vertical light guides with round or rectangular displays provide design engineers with ultimate flexibility. MENTOR light guides are visibly superior, premium-quality precision optics that will enhance the appearance of any electronic device.

• L1 to L12 Recommended LED
• <12kV ESD protection
• 2 x 5mm Surface

Applications

Industrial, Lighting

Other details

Brand	MENTOR
Part Number	1274.1011
Quantity	Each
Technical Data Sheet EN
