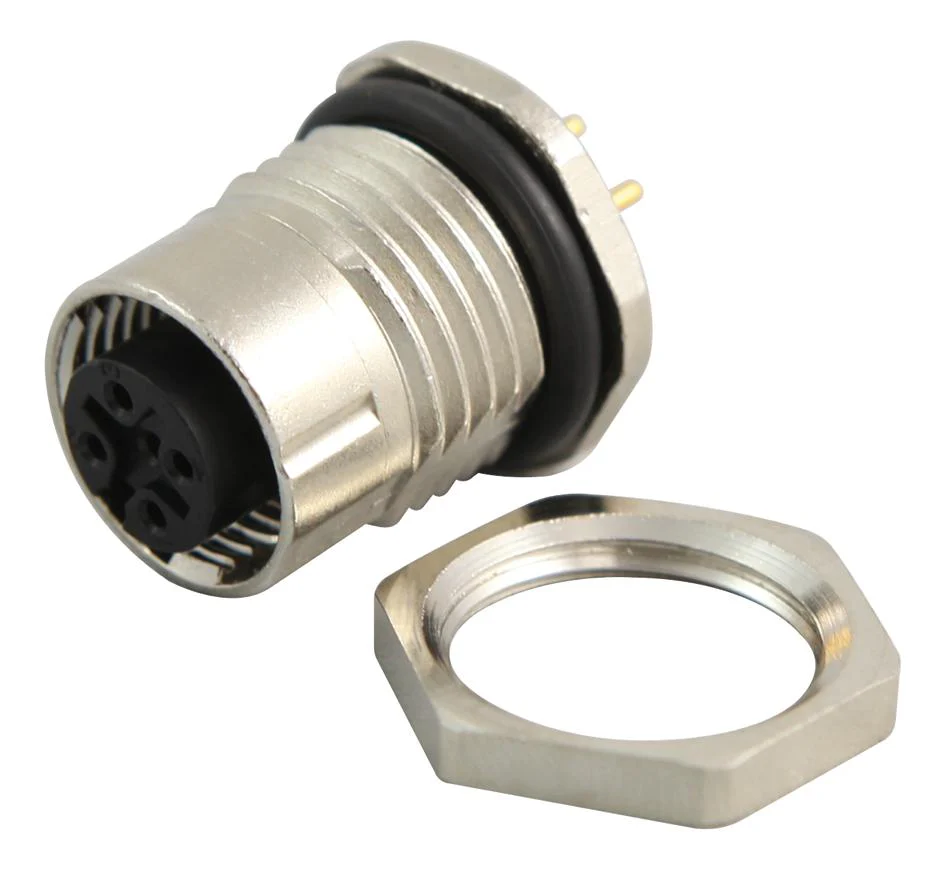

Phoenix Contact SACC-DSI-FS-5CON-L180 SCO SACC-DSI-FS-5CON-L180 SCO Sensor Connector Speedcon Series M12 Female 5 Positions Solder Socket Straight Panel Mount

The SACC-DSI-FS-5CON-L180 SCO is a 5-position A-coded sensor/actuator Flush-type Socket with straight solder connection. It has gold-plated copper zinc alloy contacts and PA 66 (polyamide 66) contact carrier. All standard pin assignments and coding for signal, data and power transmission with uniform design-in design.

• Rear/screw mounting with PG9 thread
• Easy PCB assembly - One-piece connectors for wave soldering
• M12 SPEEDCON fast locking system reduces cabling times
• Nickel-plated zinc die-cast knurls
• 4A Rated current at 40°C
• 60V Rated voltage
• 1.5kV Rated surge voltage
• >=100MR Insulation resistance
• IP67 Protection

Applications

Sensing & Instrumentation, Communications & Networking

Other details

Brand	PHOENIX CONTACT
Part Number	SACC-DSI-FS-5CON-L180 SCO
Quantity	Each
