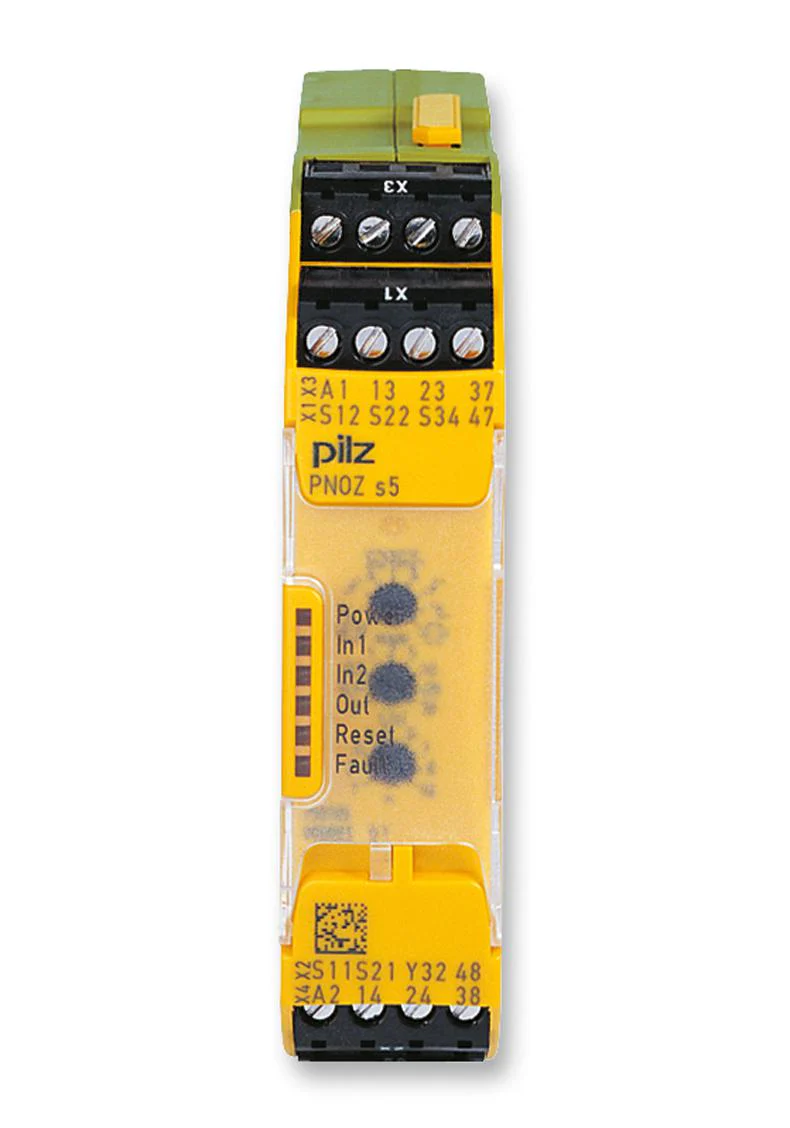

PILZ 751105 Safety Relay, 24 VDC, 4PST-NO, PNOZ s5, DIN Rail, 6 A, Spring Clamp
The PNOZ s5 series Safety Relay for monitoring E-stop pushbuttons, safety gates and light beam devices. The safety relay meets the requirements of EN 60947-5-1, EN 60204-1 and VDE 0113-1. A connector can be used to connect 1 PNOZsigma contact expander module. The correct opening and closing of the safety function relays is tested automatically in each ON-OFF cycle. It has connection options for E-stop pushbutton, safety gate limit switch, reset button, light barriers and PSEN.
- Positive-guided relay outputs
- 1 Semiconductor output
- Delay-on de-energisation selectable
- Operating modes and delay times can be selected via rotary switches
- Plug-in connection terminals
- The circuit is redundant with built-in self-monitoring
- The safety function remains effective in the case of a component failure
- The unit has an electronic fuse
Applications
Industrial, Safety, Lighting
Product details
| Coil Voltage: 24VDC |
| Contact Configuration: 4PST-NO |
| Product Range: PNOZ s5 |
| Relay Mounting: DIN Rail |
| Contact Current: 6A |
| Relay Terminals: Spring Clamp |
| Contact Voltage AC Nom: 240V |
| Contact Voltage DC Nom: 24V |
| Contact Material: Silver Copper Nickel |
| IP Rating: IP20, IP40, IP54 |
Other details
| Brand | PILZ |
| Part Number | 751105 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
