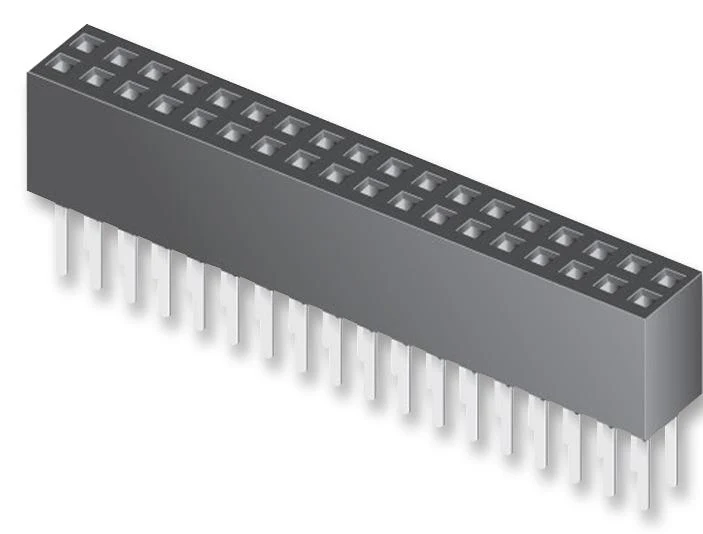

Samtec SFMC-105-01-S-D Board-To-Board Connector 1.27 mm 10 Contacts Receptacle Sfmc Series Through Hole 2 Rows
Samtec SFMC-105-01-S-D Board-To-Board Connector 1.27 mm 10 Contacts Receptacle Sfmc Series Through Hole 2 Rows
- Available in dual row with vertical orientation
- Pitch spacing is 1.27mm (2 to 50 contacts per row) with through hole lead style (-01, -03 )
- 30µ" gold plated contacts
- Black liquid crystal polymer insulator material
- Complies with UL E111594 and CSA 090871_0_000 standards
- Contact material is beryllium copper (BeCu)
- Contact resistance is 15mohm
- High operating temperature range of -55°C to 125°C
Industrial
Other details
| Brand | SAMTEC |
| Part Number | SFMC-105-01-S-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
