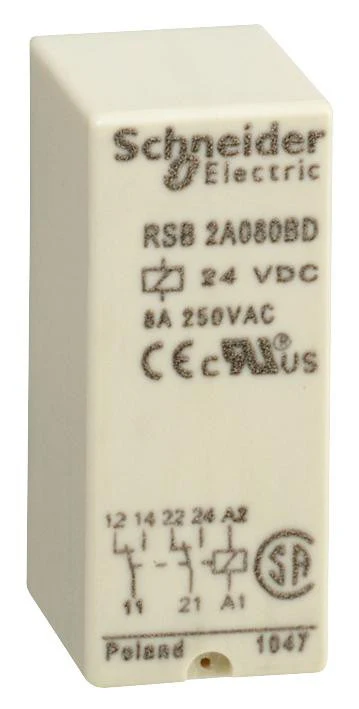

SCHNEIDER ELECTRIC RSB2A080BD General Purpose Relay, RSB Series, Interface, DPDT, 24 VDC, 8 A
SCHNEIDER ELECTRIC RSB2A080BD General Purpose Relay, RSB Series, Interface, DPDT, 24 VDC, 8 A
- DPDT configuration
- Control voltage is 24VDC
- Contact current is 8A at 250VAC, 28VDC
- Rated operational voltage limits from 19.2VDC to 26.4VDC
- Rated operational current is 4A at NC and 8A at NO
- CSA C22-2 No 14, EN/IEC 61810-1, UL 508 approved
- IP40 conforming to EN/IEC 60529 standards
- Maximum switching voltage is 300VDC, 400VAC
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Alloy |
| Relay Mounting | Socket |
| Coil Type | - |
| Coil Resistance | 1.44kohm |
| Product Range | RSB Series |
| Relay Terminals | Quick Connect |
| Contact Current | 8A |
| Approvals & Standards | CSA, UL |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 28VDC |
Other details
| Brand | SCHNEIDER ELECTRIC |
| Part Number | RSB2A080BD |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
