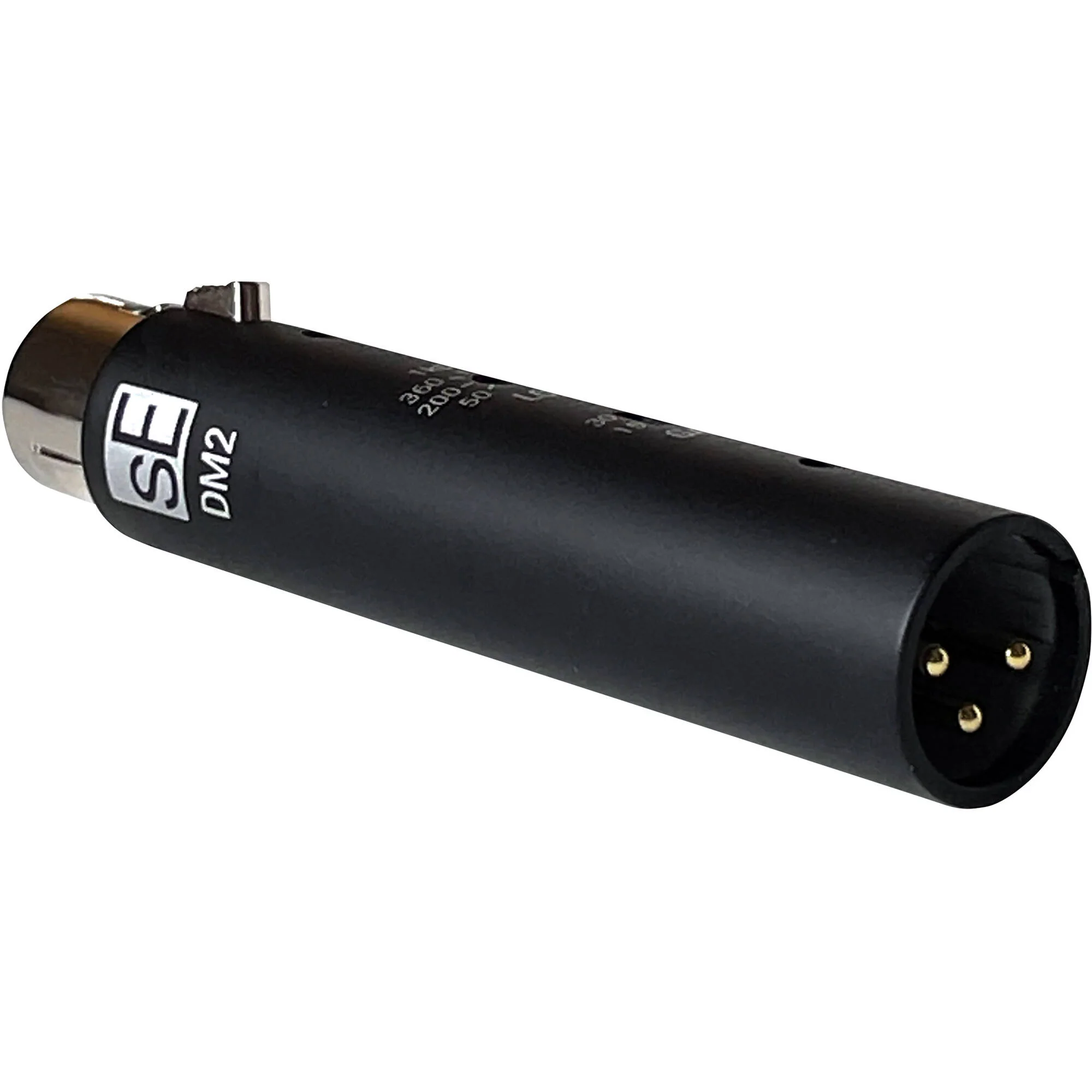

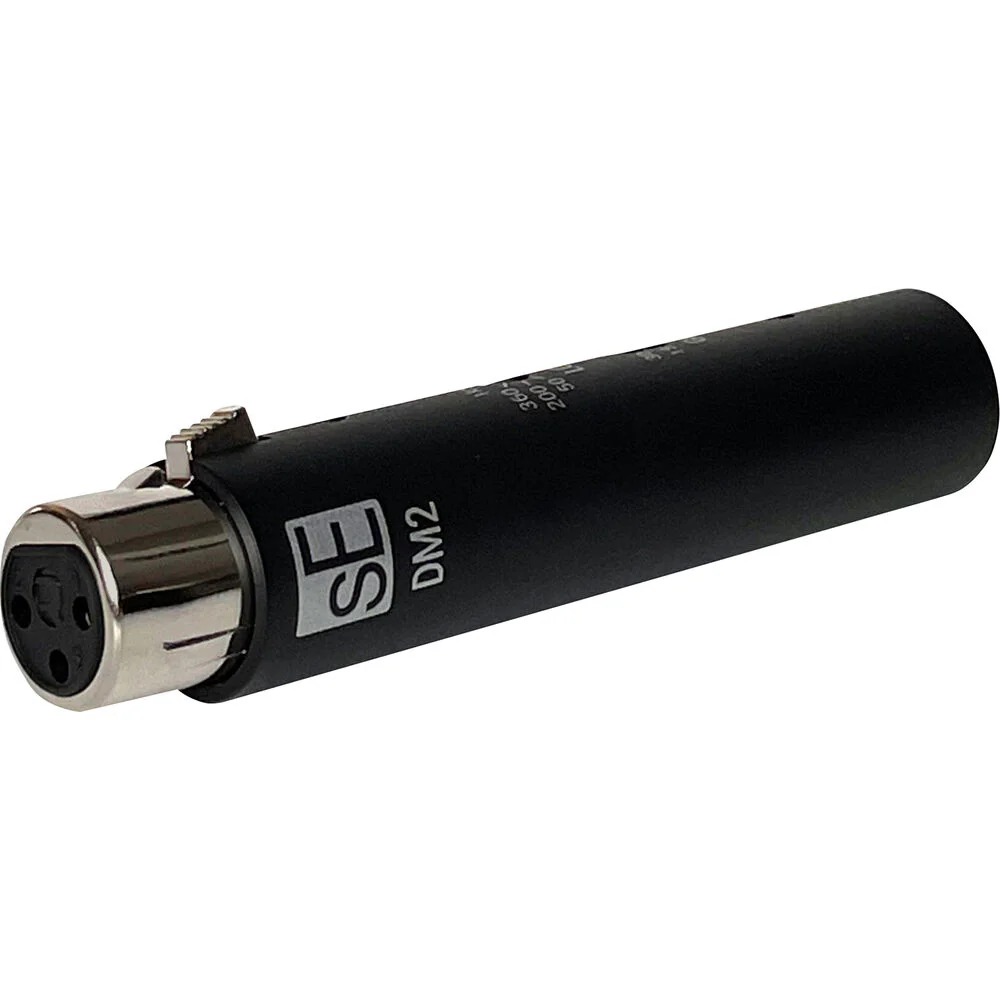

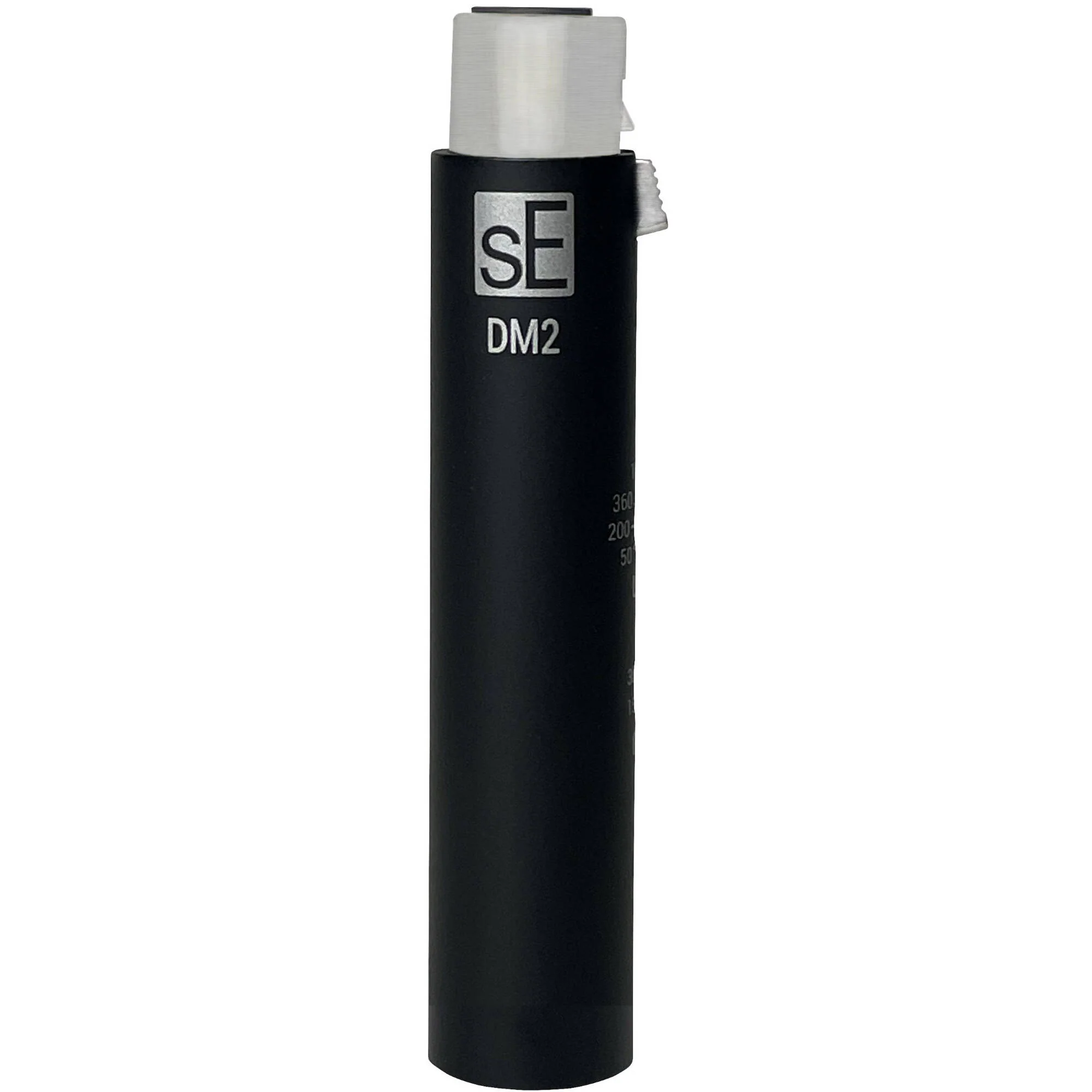

sE Electronics DM2 TNT Active In-Line Microphone Preamplifier (Black)
sE Electronics DM2 TNT Overview
The black DM2 TNT Active In-Line Microphone Preamplifier from sE Electronics is intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately) to provide gain for the microphone signal. A switch allows you to select between 15 and 30 dB of gain to boost the audio signal, improving the level to your preamp, mixer, or audio interface without adding noise or coloring the sound.

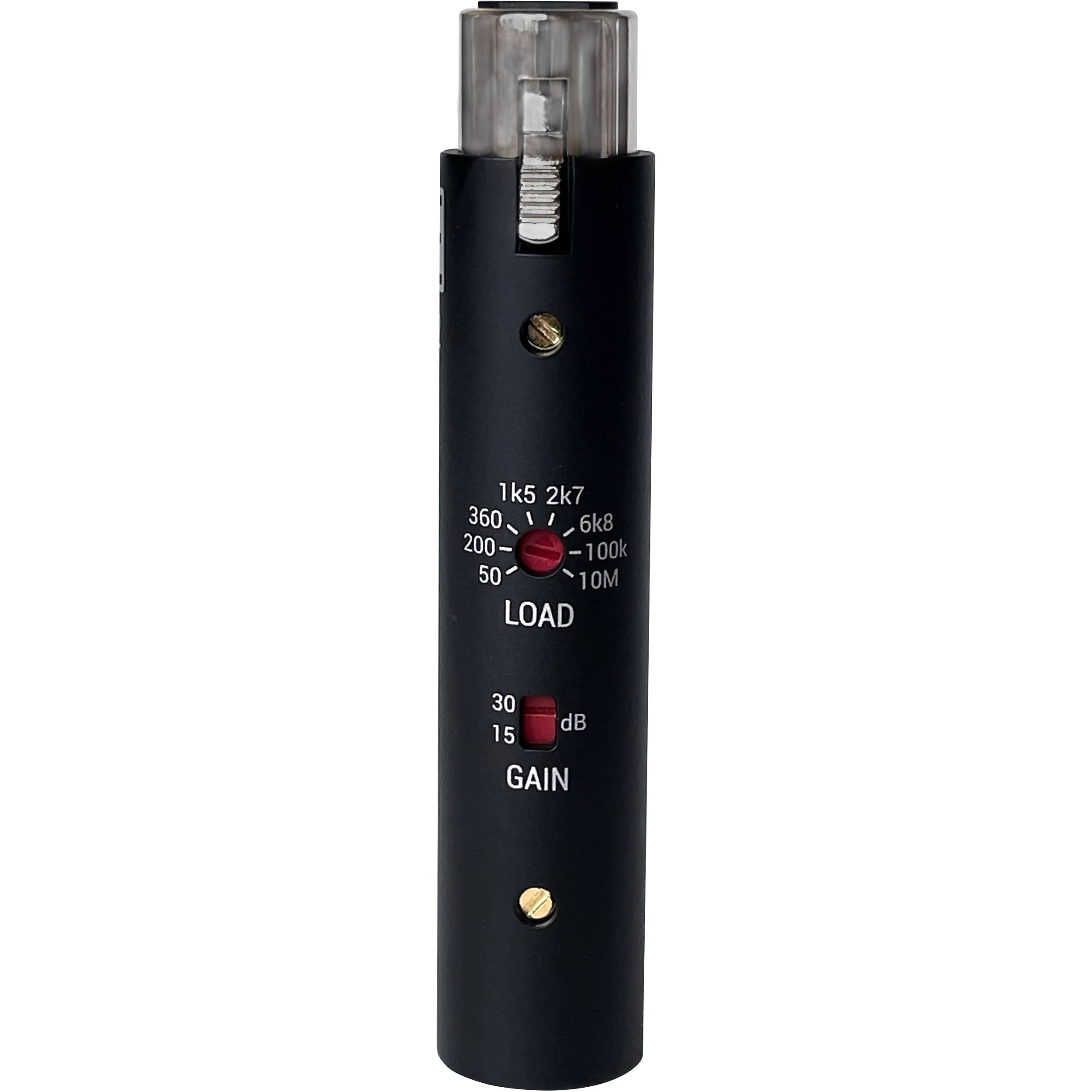

The DM2 offers eight load-impedance settings, allowing you to properly match your microphone and preamp combination and find the sweet spot for optimal results. The sophisticated Class-A design and high-grade FETs provide clean gain with low self-noise. The active preamp requires 48V phantom power for operation and is built with a dedicated output buffer amplifier that reduces RF interference, buzz, and hum while allowing it to drive long cable runs. Additionally, the DM2 offers a roadworthy, slim, all-metal design, ensuring reliable operation for onstage applications in difficult environments. Please note that the DM2 is not suitable for phantom-powered microphones.
Items Included
- sE Electronics DM2 TNT Active In-Line Microphone Preamplifier (Black)
-
Limited 2-Year Manufacturer Warranty
Registration Extension: 1-Year
Additional Resources
sE Electronics DM2 TNT Specs
| In-Line Accessory Type |
Preamplifier
|
| Input / Output Level |
Input: Mic Level
Output: Mic Level |
| Number of Channels |
1
|
| Gain |
+15.0 / +30 dB (Selectable)
|
| Controls |
Impedance, Input Level/Gain
|
| Inputs/Outputs |
1x XLR 3-Pin Female Balanced Mic Input
1x XLR 3-Pin Male Balanced Mic Output |
| Operating Voltage |
48 V (Phantom Power)
|
| In-Line Accessory Type |
Preamplifier
|
| Input / Output Level |
Input: Mic Level
Output: Mic Level |
| Number of Channels |
1
|
| Gain |
+15.0 / +30 dB (Selectable)
|
| Circuit Type |
Class-A FET
|
| Controls |
Impedance, Input Level/Gain
|
| Indicators |
No
|
| Inputs/Outputs |
1x XLR 3-Pin Female Balanced Mic Input
1x XLR 3-Pin Male Balanced Mic Output |
| Frequency Response |
10 Hz to 120 kHz
|
| Impedance |
135 Ohms
|
| Load Impedance |
1 Kilohms (Recommended)
|
| Operating Voltage |
48 V (Phantom Power)
|
| Operating Current Consumption |
3.1 mA
|
| Dimensions |
3.8 x 0.7" / 95.5 x 19 mm
|
| Weight |
2.8 oz / 80 g
|
| Package Weight |
0.215 lb
|
| Box Dimensions (LxWxH) |
6.55 x 1.25 x 1.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $258.17
-70%$258.17
$77.45More Images
