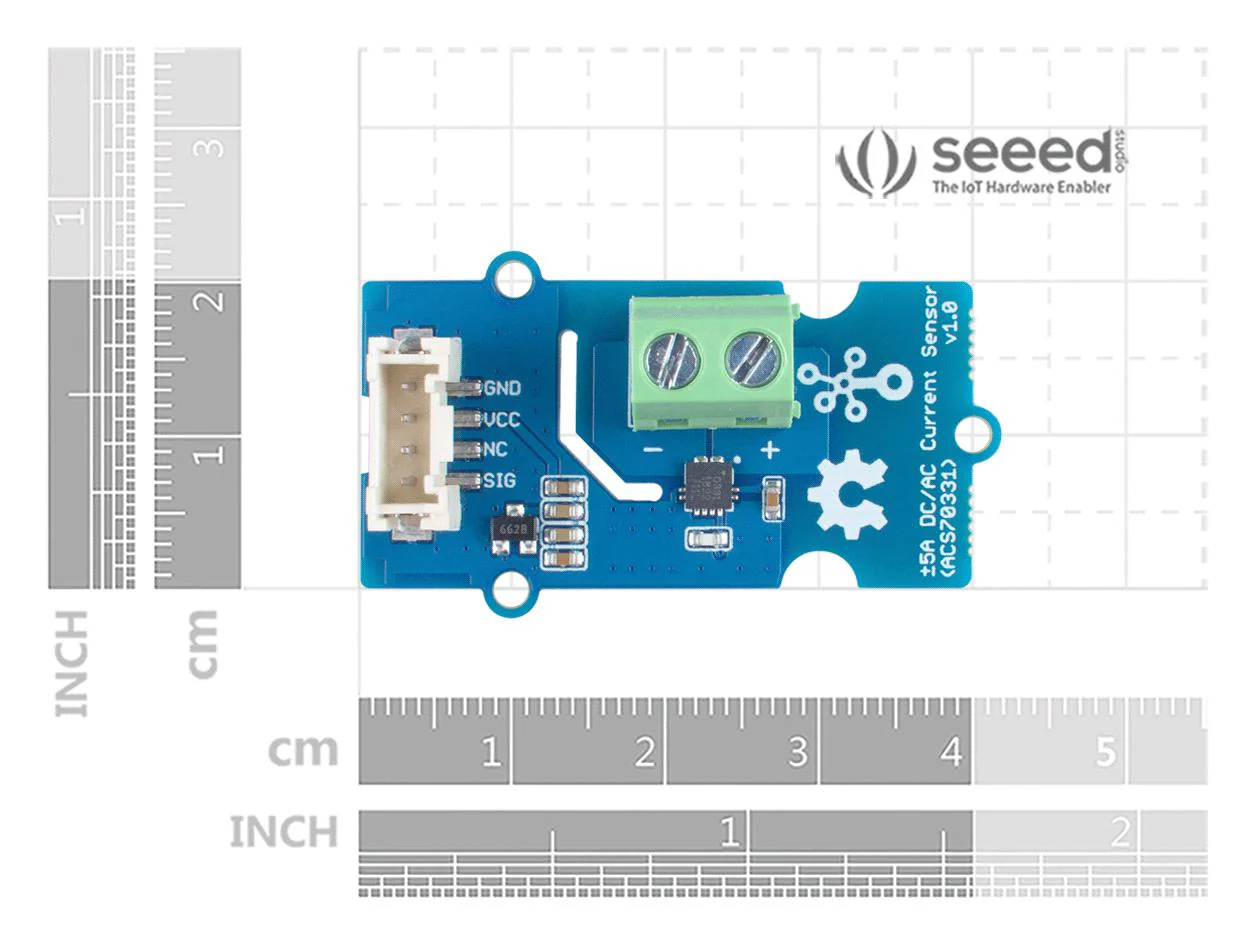

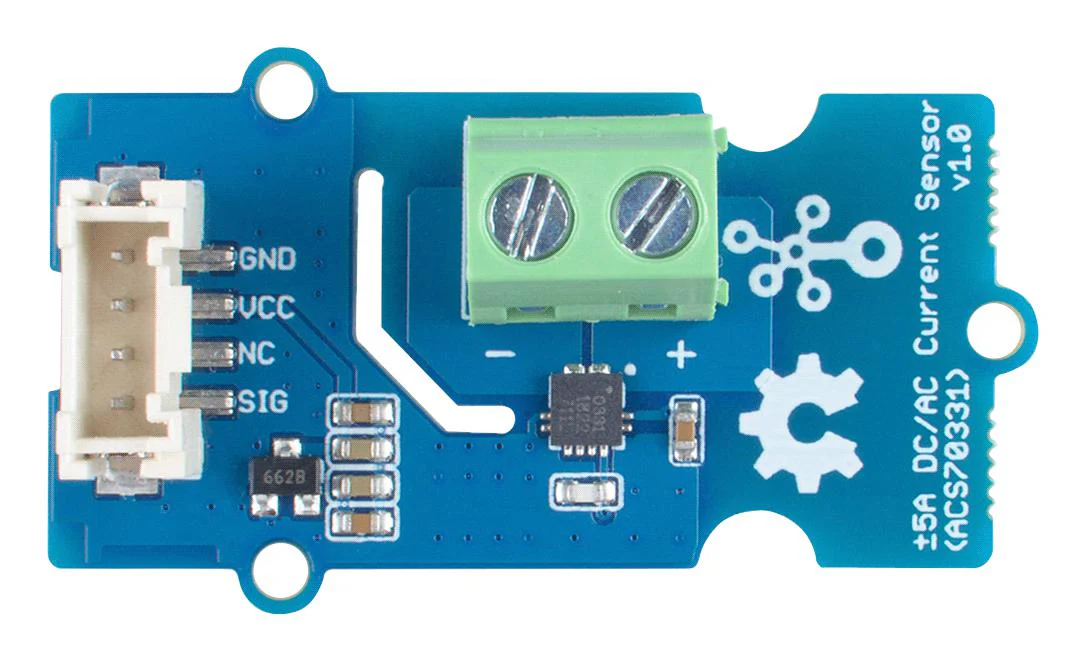

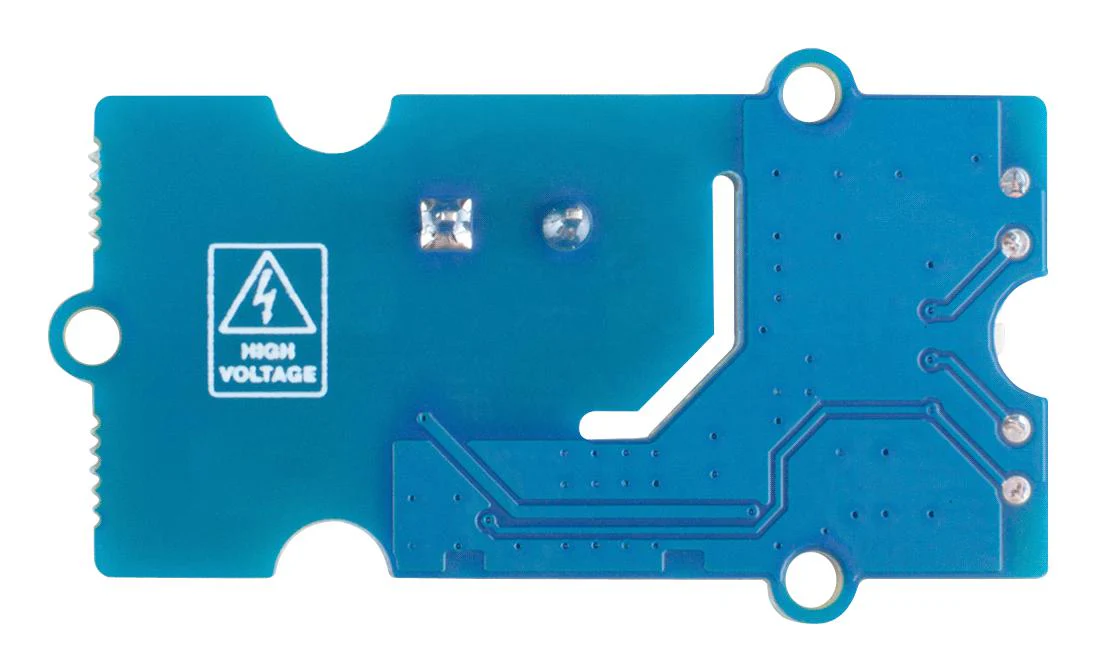

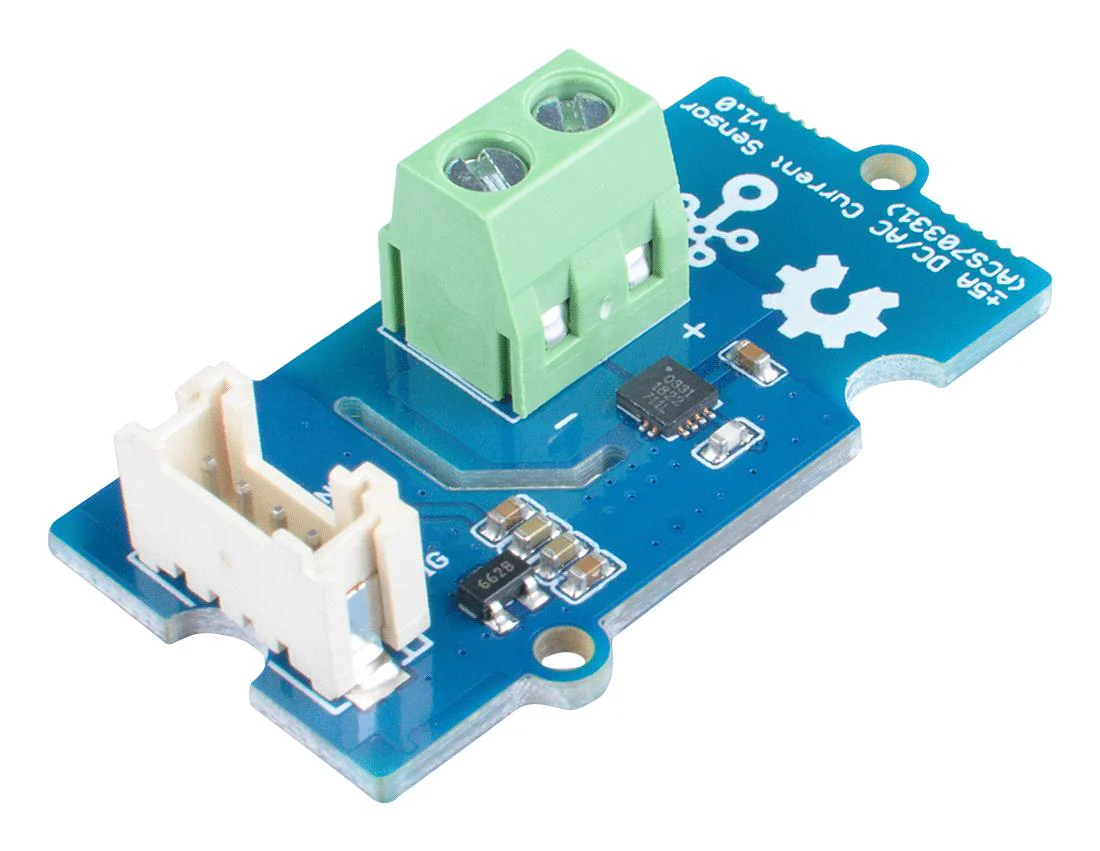

Seeed Studio 101020615 Current Sensor Board 3.3V / 5V ±5A DC/AC Arduino & Raspberry Pi

Grove - ±5A DC/AC Current Sensor (ACS70331) is a high precision DC/AC current sensor based on ACS70331. The ACS70331EESATR-005B3 is Allegro's high sensitivity, current sensor IC for <5 A current sensing applications. It incorporates giant magneto-resistive (GMR) technology that is 25 times more sensitive than traditional Hall-effect sensors to sense the magnetic field generated by the current flowing through the low resistance, integrated primary conductor.

• 1MHz bandwidth with response time <550ns
• Low noise: 8mA(rms) at 1MHz
• 1.1mohm primary conductor resistance results in low power loss
• High DC PSRR enables use with low accuracy power supplies or batteries (3 to 4.5V operation)

Product details

Accessory Type	5A DC/AC Current Sensor Board
For Use With	Arduino & Raspberry Pi Board
Product Range	-

Other details

Brand	SEEED STUDIO
Part Number	101020615
Quantity	Each
Technical Data Sheet EN
