Smart-AVI EKS-1602 16-Port Cat 5 KVM Switch
HomeStore

Smart-AVI EKS-1602 16-Port Cat 5 KVM Switch

Smart-AVI EKS-1602 16-Port Cat 5 KVM Switch

Smart-AVI EKS-1602 Overview

Maximize your company's efficiency by using the EKS-1602 16-Port Cat 5 KVM Switch from Smart-AVI. Supporting two local users, you can connect up to two USB keyboards, mice, 3.5mm speakers, and DVI-I compatible 1920 x 1200 resolution monitors and use them simultaneously.

Connect devices to the 16 RJ45 ports through separately purchased Cat 5 Ethernet cables and KVM adapters. One HDMI, one DisplayPort, and one VGA adapter are included. You can quickly switch between devices using on-screen controls and hotkeys. No complicated configuration is required.

Versatile Dual-User Support
Supports two simultaneous users and controls up to 16 servers or devices. Includes three convenient adapters for HDMI, DP, and VGA video connections, offering broad compatibility and flexible server management.
On-Screen Display (OSD) and Hotkeys
Simplify navigation and control with an intuitive OSD and customizable hotkeys, allowing for quick switching and easy access to connected devices.
Full KM and Video Emulation
Ensures continuous keyboard and mouse connectivity and maintains video integrity during switching, providing users with a seamless experience across all connected servers.
Extended Connectivity

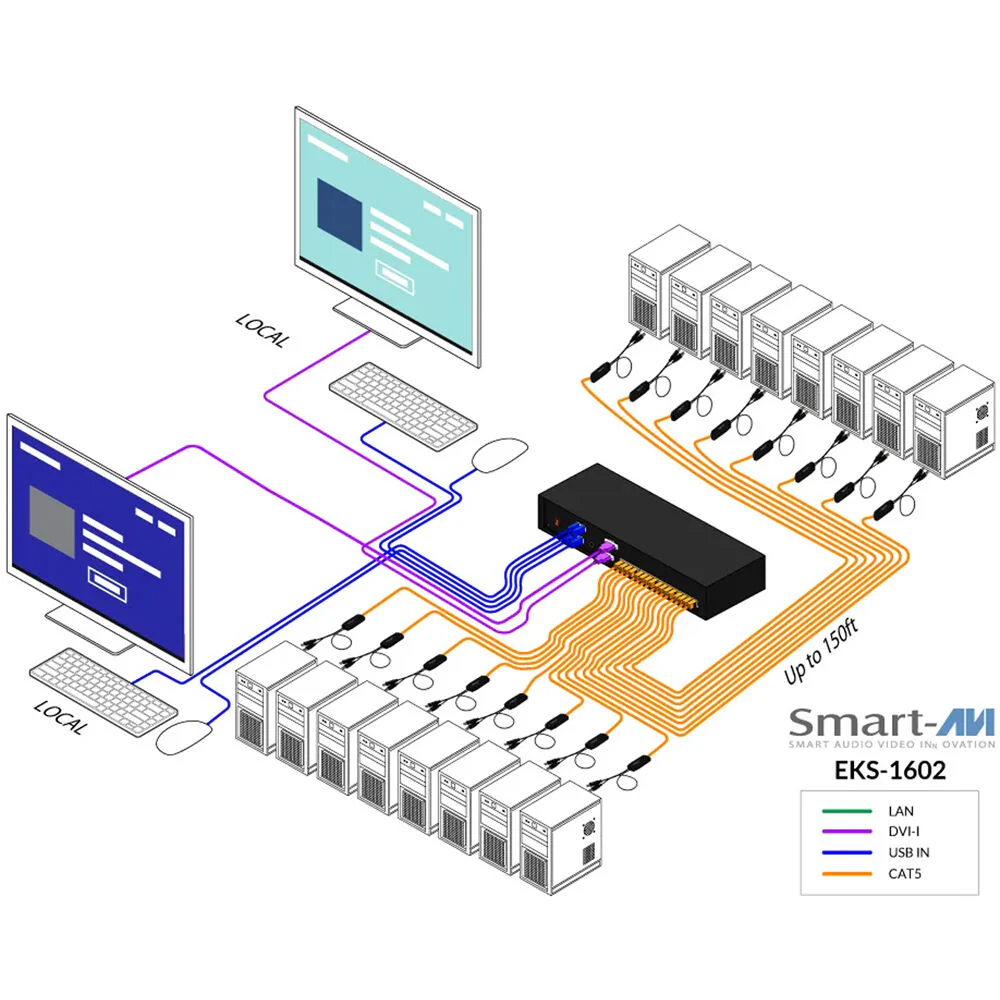

Enables connection of servers/PCs up to 150 feet away using standard Cat 5 cables, facilitating remote setup flexibility and expansive network configurations.
Full HD Video Support
Delivers crisp Full HD video output, ensuring clear and detailed visuals for efficient remote management.
Wide Compatibility
Works seamlessly with almost all operating systems, including Windows and Unix-based platforms, accommodating diverse IT infrastructures.
UPC: 657477109639

Items Included

  • Smart-AVI EKS-1602 16-Port Cat 5 KVM Switch
  • Power Cable

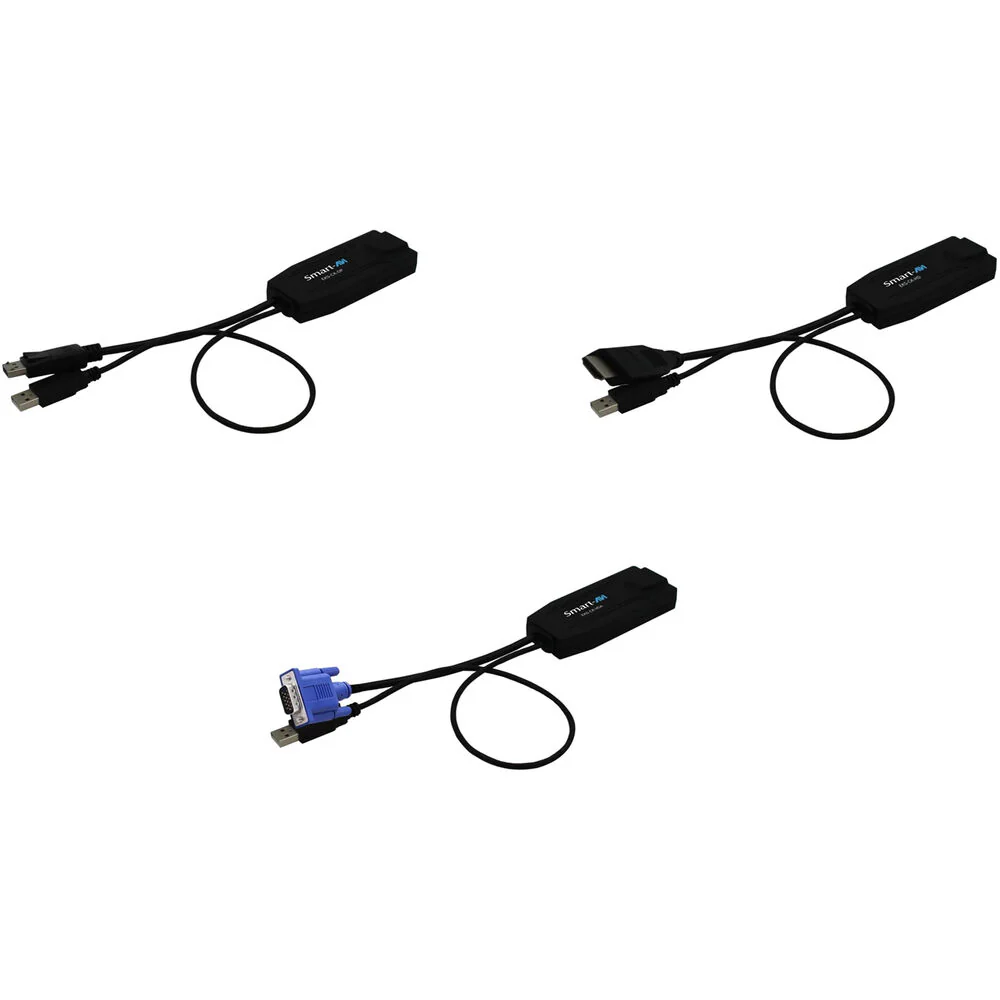

  • KVM Adapter (HDMI)
  • KVM Adapter (DisplayPort)
  • KVM Adapter (VGA)
  • Limited 1-Year Manufacturer Warranty

Additional Resources

No additional resources available

Smart-AVI EKS-1602 Specs

Key Specs
# of Systems Supported
16
KVM I/O
16x RJ45
Console I/O
2x DVI-I
2x USB-A (Keyboard)
2x USB-A (Mouse)
2x 1/8" / 3.5 mm Audio-Out
1x Micro-USB
Supported Resolutions
1920 x 1200 @ 75 Hz
General
# of Systems Supported
16
KVM I/O
16x RJ45
Console I/O
2x DVI-I
2x USB-A (Keyboard)
2x USB-A (Mouse)
2x 1/8" / 3.5 mm Audio-Out
1x Micro-USB
Supported Resolutions
1920 x 1200 @ 75 Hz
USB Keyboard/Mouse Emulation
Yes
Power
Power Source
AC Adapter
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Certifications
CE, FCC
Operating Conditions
32 to 122Ā°F / 0 to 50Ā°CĀ at 5 to 90% Humidity
Storage Conditions
-4 to 140Ā°F / -20 to 60Ā°CĀ
Housing Material
Metal
Dimensions
17.4 x 5.9 x 1.7" / 442 x 149.9 x 43.2Ā mm
Weight
4.43Ā lb / 2.01Ā kg

All product and company names are trademarksā„¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
