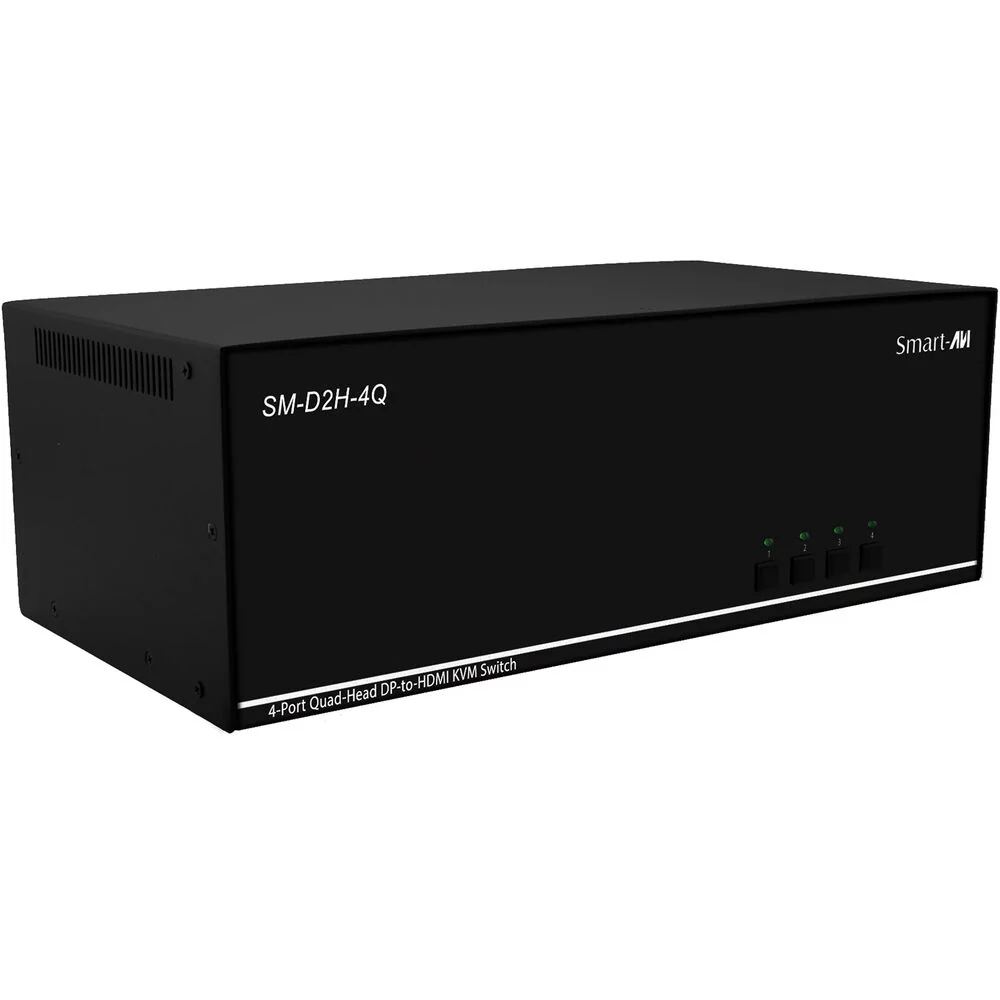

Smart-AVI SM-D2H-4Q 4-Port, Quad-Head 4K DisplayPort to HDMI KVM Switch
Smart-AVI SM-D2H-4Q-S Overview
Designed for versatility, the SM-D2H-4Q 4-Port, Quad-Head 4K DisplayPort to HDMI KVM Switch from Smart-AVI allows you to simultaneously control up to four connected computer systems using a single keyboard and mouse. Additionally, it converts up to four 3840 x 2160 resolution UHD 4K, 30 Hz DisplayPort inputs to HDMI with audio sharing, delivering video and sound from your connected devices as you smoothly switch between them.

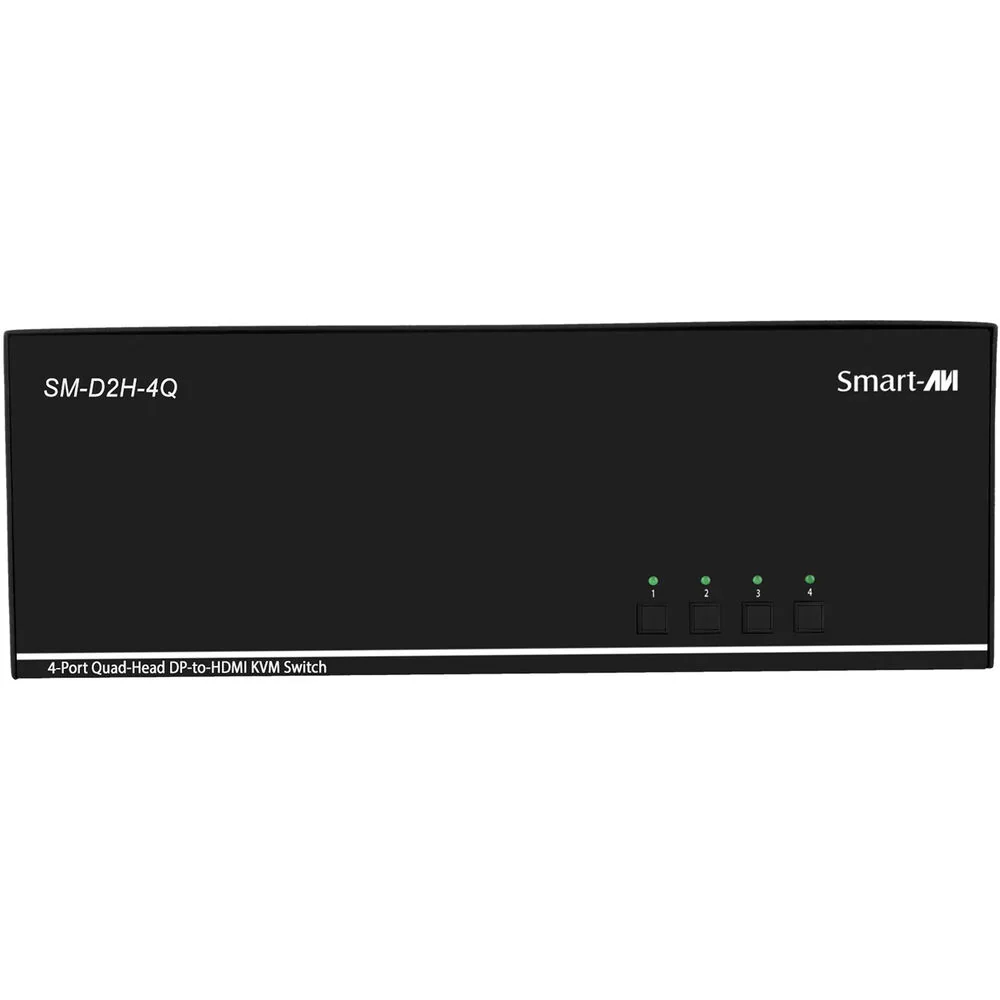

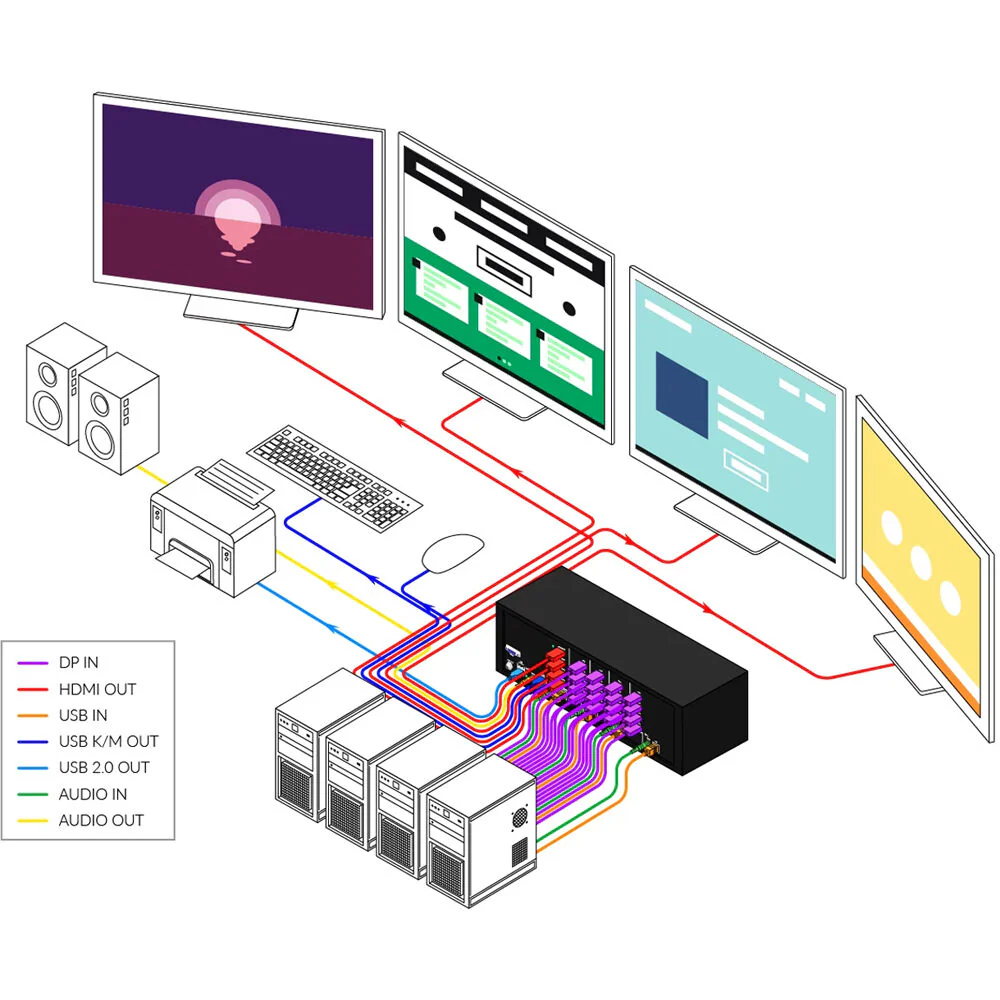

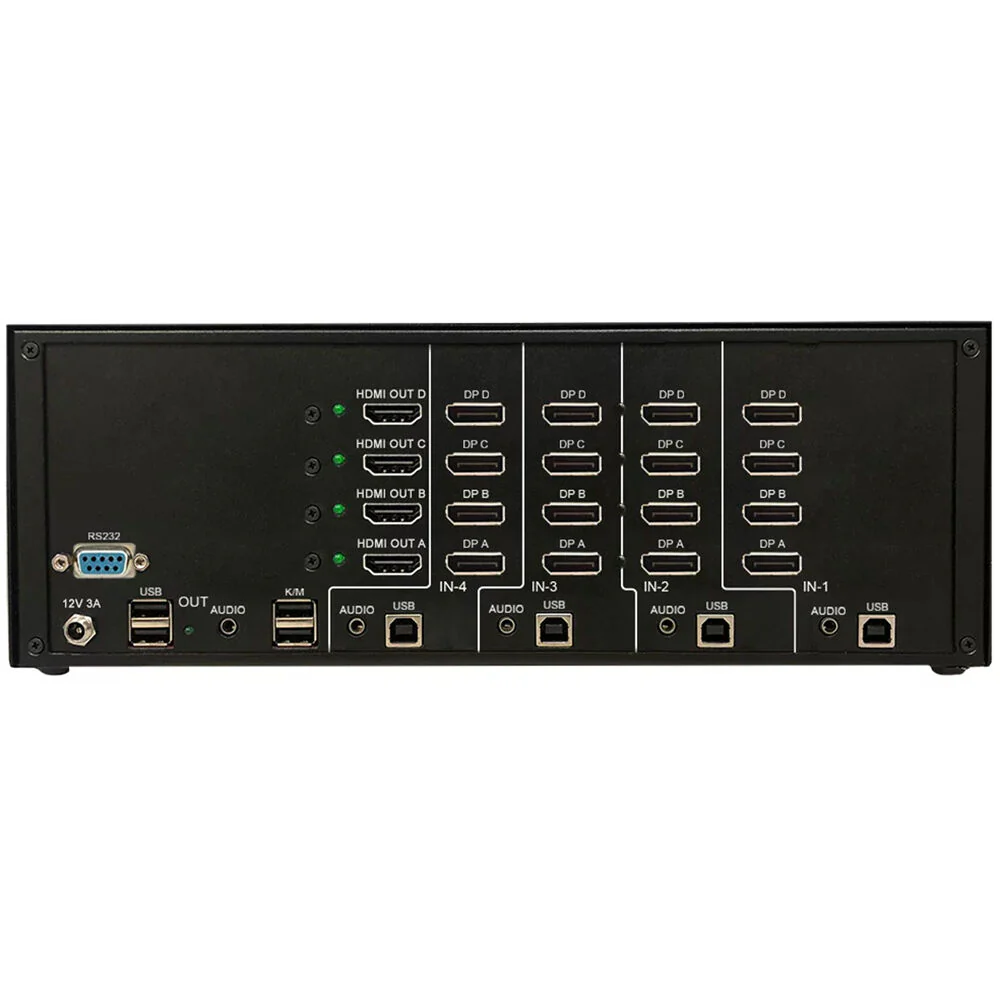

Computer systems may be connected to the rear-facing USB-B 2.0 ports, DisplayPort inputs, and 3.5mm audio jacks using separately purchased cables while your USB-A keyboard, mouse, and HDMI monitors plug into the designated ports. Up to two additional devices such as flash drives, printers, and cameras may be connected to the USB-A 2.0 ports and shared across the computers. Front-facing buttons allow you to quickly switch between computers. This switch also supports keyboard hotkeys and RS-232 serial control.
In the Box
- Smart-AVI SM-D2H-4Q 4-Port, Quad-Head 4K DisplayPort to HDMI KVM Switch
- Power Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
Smart-AVI SM-D2H-4Q-SSpecs
| # of Systems Supported |
4
|
| KVM I/O |
16x DisplayPort
4x USB-B 2.0 4x 1/8" / 3.5 mm Line-In |
| Console I/O |
4x HDMI
2x USB-A 1.1 (Keyboard/Mouse) 2x USB-A 2.0 1x 1/8" / 3.5 mm Line-Out 1x DE-9/DB-9 (RS-232) |
| Supported Resolutions |
3840 x 2160 @ 30 Hz
|
| # of Systems Supported |
4
|
| KVM I/O |
16x DisplayPort
4x USB-B 2.0 4x 1/8" / 3.5 mm Line-In |
| Console I/O |
4x HDMI
2x USB-A 1.1 (Keyboard/Mouse) 2x USB-A 2.0 1x 1/8" / 3.5 mm Line-Out 1x DE-9/DB-9 (RS-232) |
| Supported Resolutions |
3840 x 2160 @ 30 Hz
|
| USB Keyboard/Mouse Emulation |
Yes
|
| Power Source |
AC Adapter
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Certifications |
UL, CE, RoHS
|
| Storage Conditions |
-4 to 140Ā°F / -20 to 60Ā°CĀ
|
| Dimensions |
12.57 x 6.69 x 4.9" / 31.93 x 16.99 x 12.4Ā cm
|
| Weight |
4.2Ā lb / 1.9Ā kg
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
