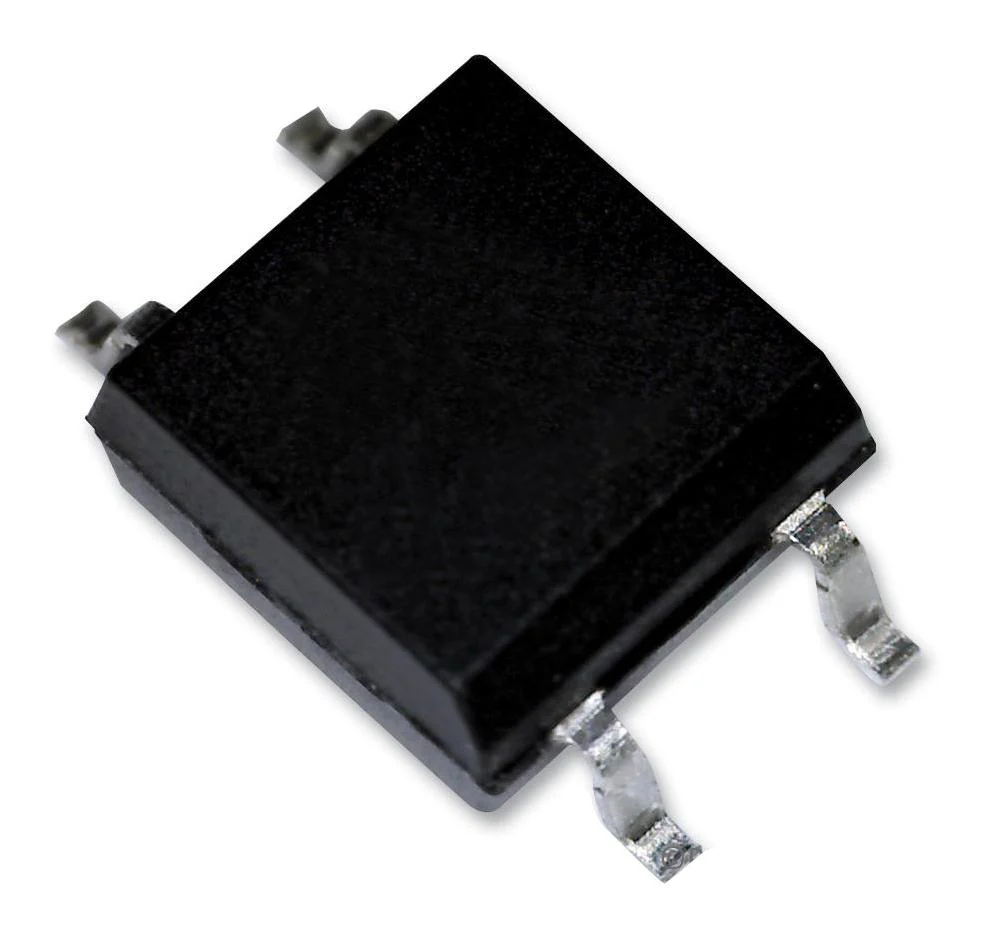

TOSHIBA TLP3122A(E(T MOSFET Relay, SPST-NO (1 Form A), AC / DC, 60 V, 1.4 A, SOP-4, Surface Mount TLP3122A, TLP3122A(E(O
TOSHIBA TLP3122A(E(T MOSFET Relay, SPST-NO (1 Form A), AC / DC, 60 V, 1.4 A, SOP-4, Surface Mount TLP3122A, TLP3122A(E(O
Product Overview
TLP3122A(E(T is a photo relay. It consists of an infrared LED optically coupled to a photo-MOSFET. This photo relay has higher output current rating than phototransistor-type photocoupler; hence, it is suitable for use as On/Off control for high current. It is approved by UL-recognized: UL 1577, File No.E67349, cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349, UL-recognized: UL 508, File No.E499232, VDE-approved: EN 60747-5-5. It is used in applications such as measuring instruments, security systems, ATE (automatic test equipment), factory automation (FA), battery management system (BMS) (non-automotive), programmable logic controllers (PLCs), mechanical relay replacements.
- Halogen-free, normally opened (1-Form-A)
- OFF-state output terminal voltage is 60V minimum
- Trigger LED current is 3mA maximum
- ON-state current is 1.4mA maximum
- ON-state resistance is 0.255ohm maximum
- Isolation voltage is 3750Vrms minimum
- Operating temperature range from -40Ā°C to 110Ā°C
- 4-pin SO6 package
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TLP3122A(E(T |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
