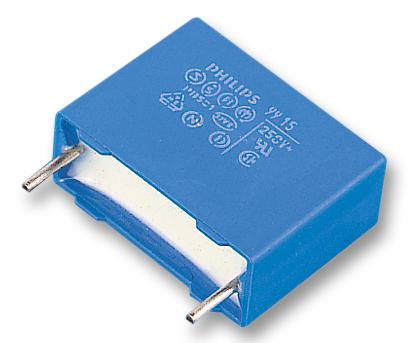

Vishay BFC233820155 Safety Capacitor Metallized PP Radial Box - 2 Pin 1.5 µF ± 20% X2 Through Hole

The Vishay MKP3382 X2 series are radial leaded, interference suppression film capacitors. The capacitance range includes E12 decade values from 0.001µF to 3.3µF. These film capacitors are non polarized electrical capacitors with an insulated Polypropylene film as dielectric.

• 7.5mm to 27.5mm lead pitch
• ±20%, ±10% and ±5% tolerance
• Rated AC voltage of 310V
• Rated DC voltage of 800V at 85°C and 630V at 110°C
• Meets IEC 60384-14-3, EN60384-14, IEC 60065, UL 60384-14, CSA-E384-14, CQC standards
• Flame retardant plastic case and epoxy resin coated with tinned wire

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY
Part Number	BFC233820155
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
