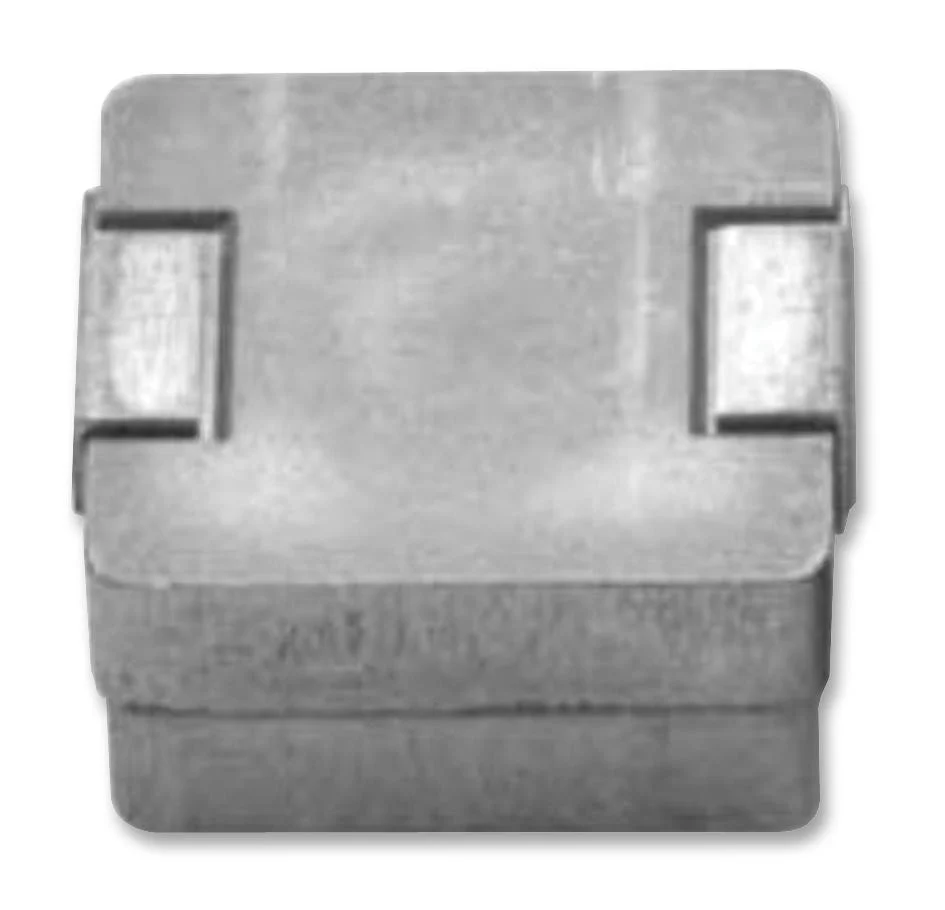

VISHAY IHLP5050FDER5R6M01 Surface Mount Power Inductor, IHLP-5050FD-01 Series, 5.6 µH, 13.5 A, 32 A, Shielded, 0.01 ohm
VISHAY IHLP5050FDER5R6M01 Surface Mount Power Inductor, IHLP-5050FD-01 Series, 5.6 µH, 13.5 A, 32 A, Shielded, 0.01 ohm
Product details
| Product Range | IHLP-5050FD-01 Series |
| Inductance | 5.6µH |
| RMS Current (Irms) | 13.5A |
| Saturation Current (Isat) | 32A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.01ohm |
| Power Inductor Case | 13.2mm x 12.9mm x 6.5mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | VISHAY |
| Part Number | IHLP5050FDER5R6M01 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Technical Page (489.67KB) EN | |
| Manufacturer Catalogue EN | |
| Manufacturer Product Page EN | |
| Application Note EN | |
| One Page Summary EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
