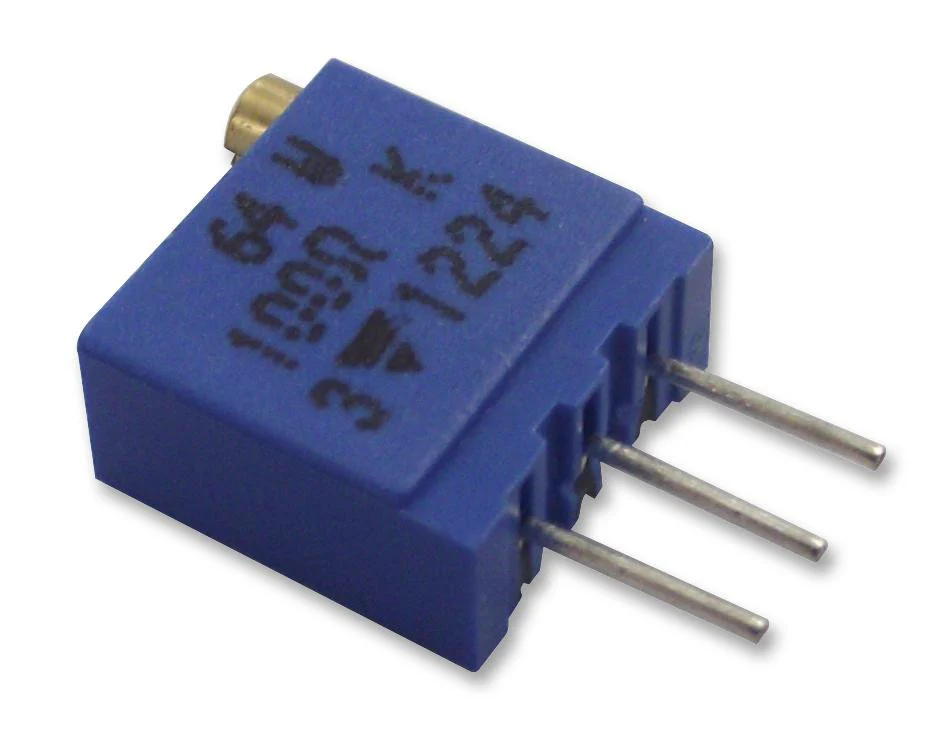

VISHAY M64W201KB40 Trimmer Potentiometer, 200 ohm, 500 mW, ± 10%, 64W Series, 21 Turns, Through Hole
HomeStore

VISHAY M64W201KB40 Trimmer Potentiometer, 200 ohm, 500 mW, ± 10%, 64W Series, 21 Turns, Through Hole

VISHAY M64W201KB40 Trimmer Potentiometer, 200 ohm, 500 mW, ± 10%, 64W Series, 21 Turns, Through Hole

The Vishay 64 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn, small size with PC board mounting. Available in five versions (P, W, X, Y, Z) which differ by the position of the control screw in relation to the PC board plane and by the spacing of the terminals. Excellent operational stability is provided by the use of a cermet element.
  • 10mm square potentiometer, industrial grade
  • Sealing is IP67 rated (fully sealed body)
  • 21 turns and rotational life of 200 cycles
  • Resistance value ranges from 10 ohm to 2.2Mohm
  • Ā±10% tolerance
  • Temperature coefficient is Ā±100ppm/Ā°C
  • Operating temperature range -55Ā°C to +155Ā°C
  • Power Rating is 0.5W
  • Contact resistance variation < 1% typical
  • Tests according to CECC 41000 or IEC 60393-1 standards

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management

Product details

Temperature Coefficient Ā± 100ppm/Ā°C
Power Rating 500mW
No. of Turns 21Turns
Potentiometer Mounting Through Hole
Automotive Qualification Standard -
Resistance Tolerance Ā± 10%
Product Range 64W Series
Track Resistance 200ohm
MSL -

Other details

Brand VISHAY
Part Number M64W201KB40
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarksā„¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
