Wooden Camera B-Box for Sony BURANO
Wooden Camera A00592 Overview

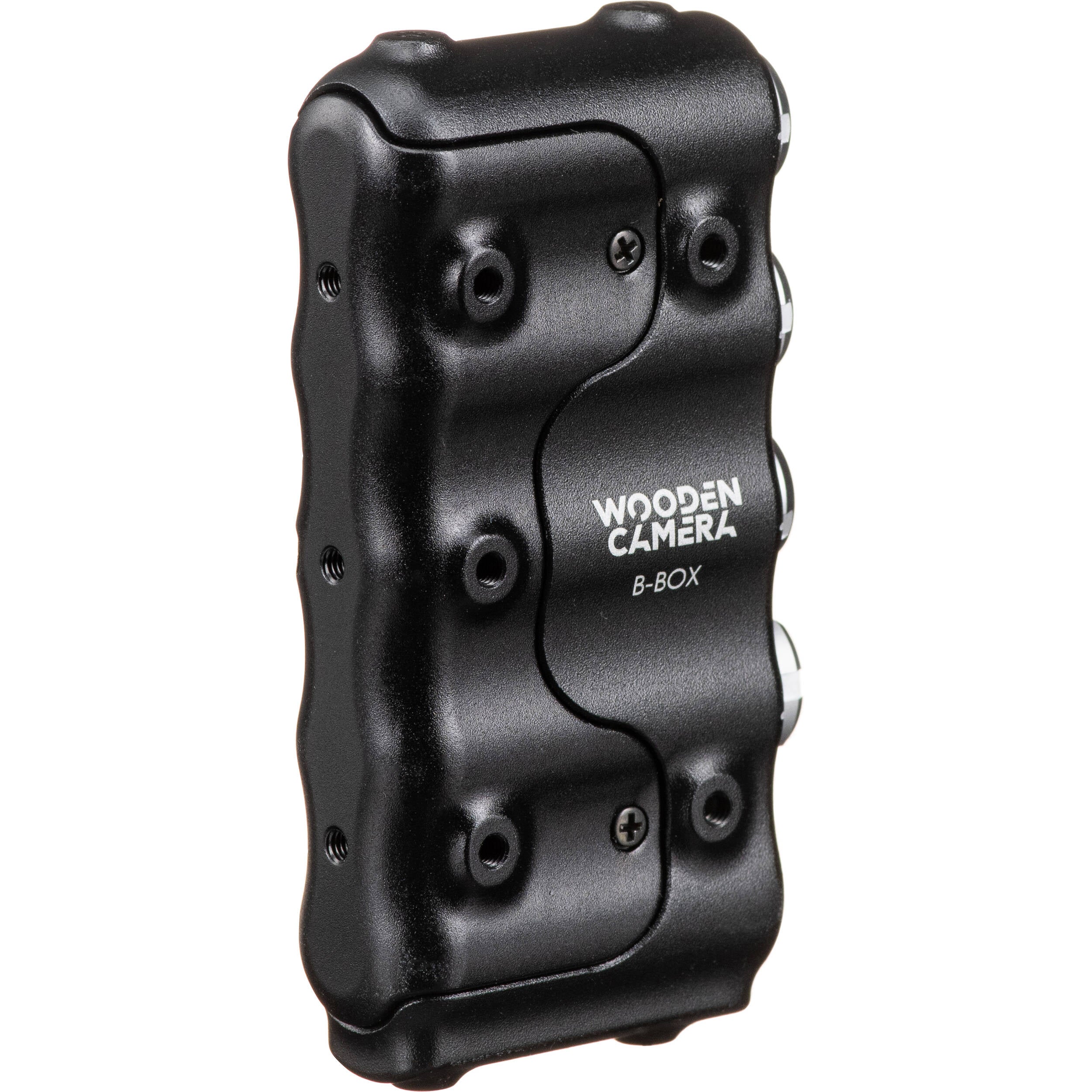

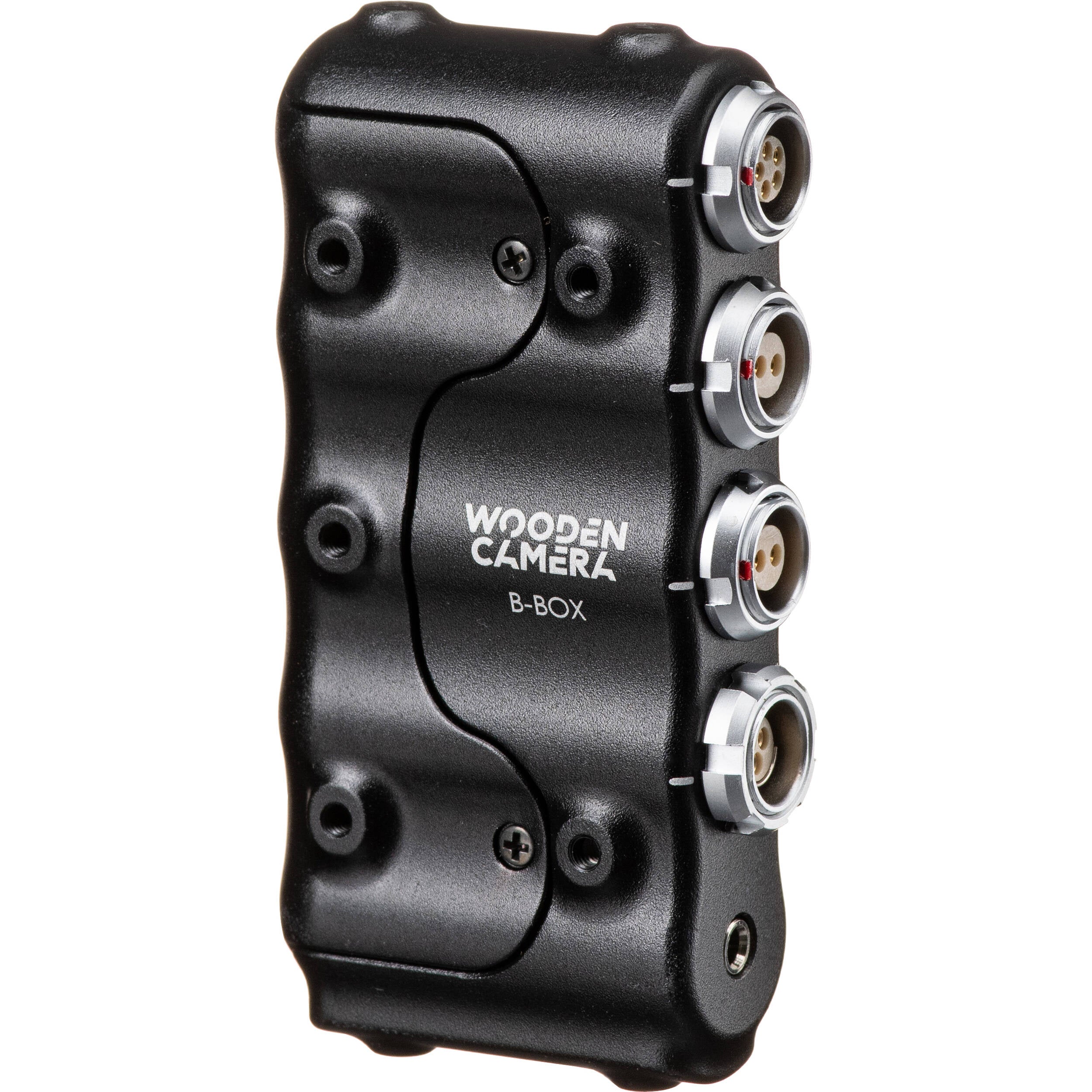

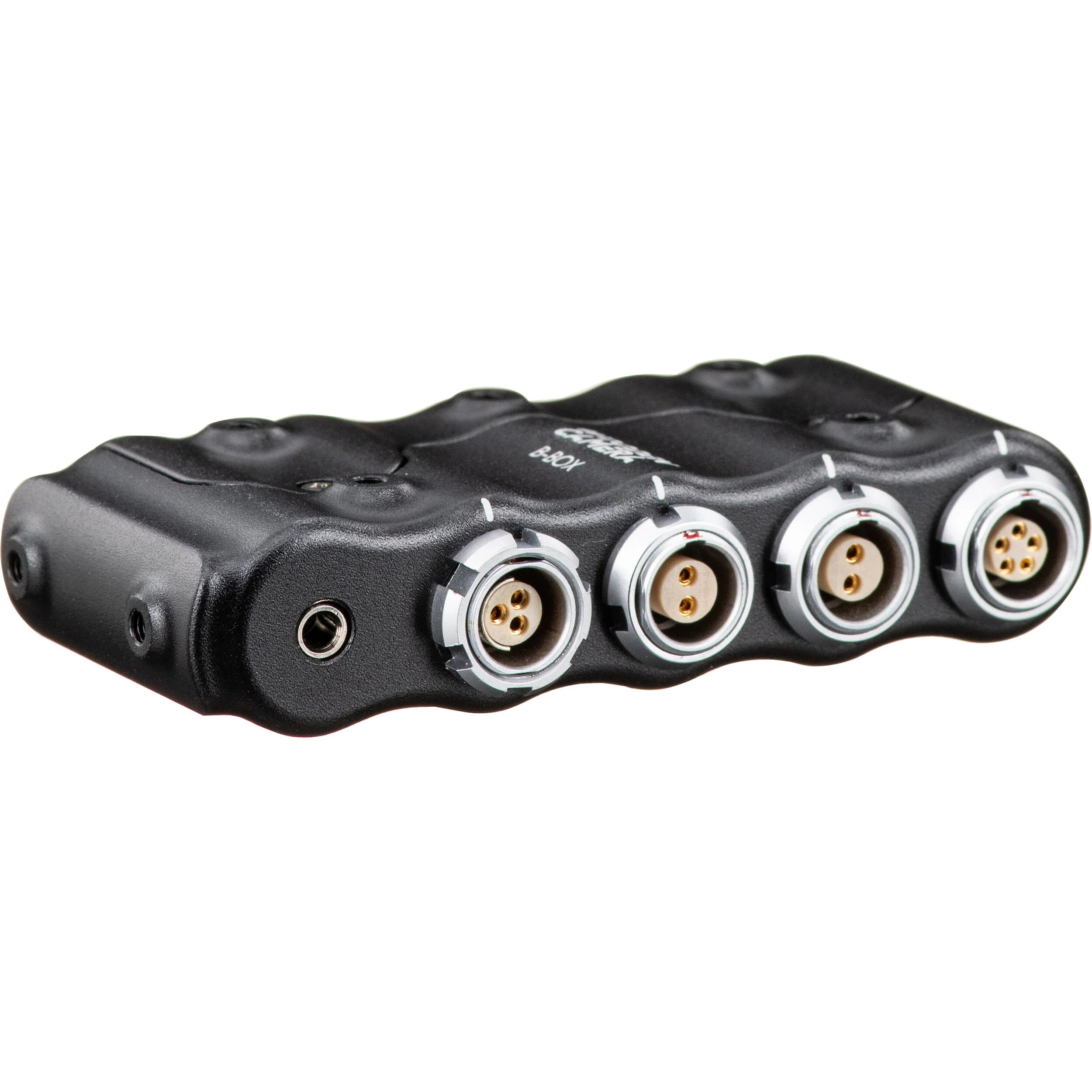

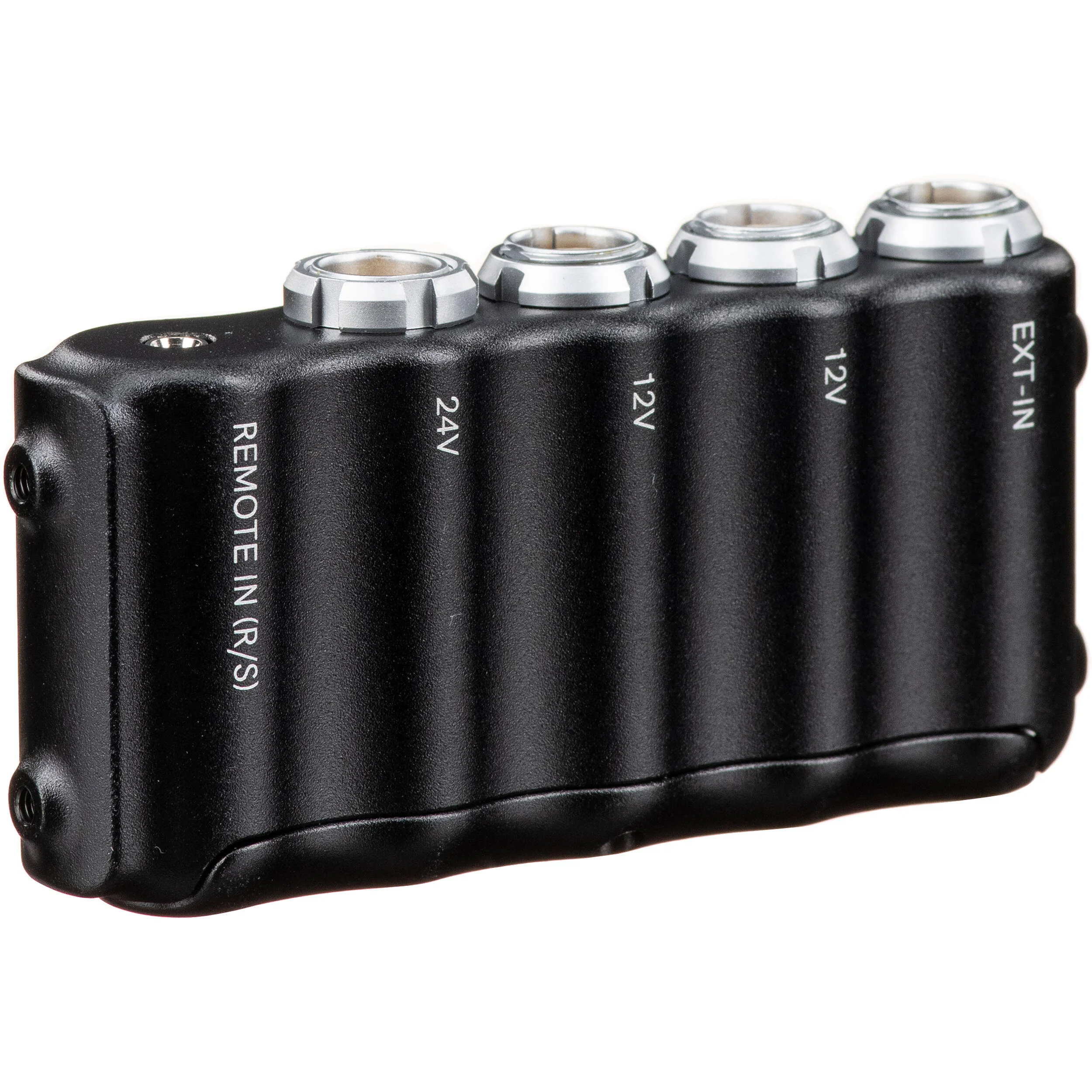

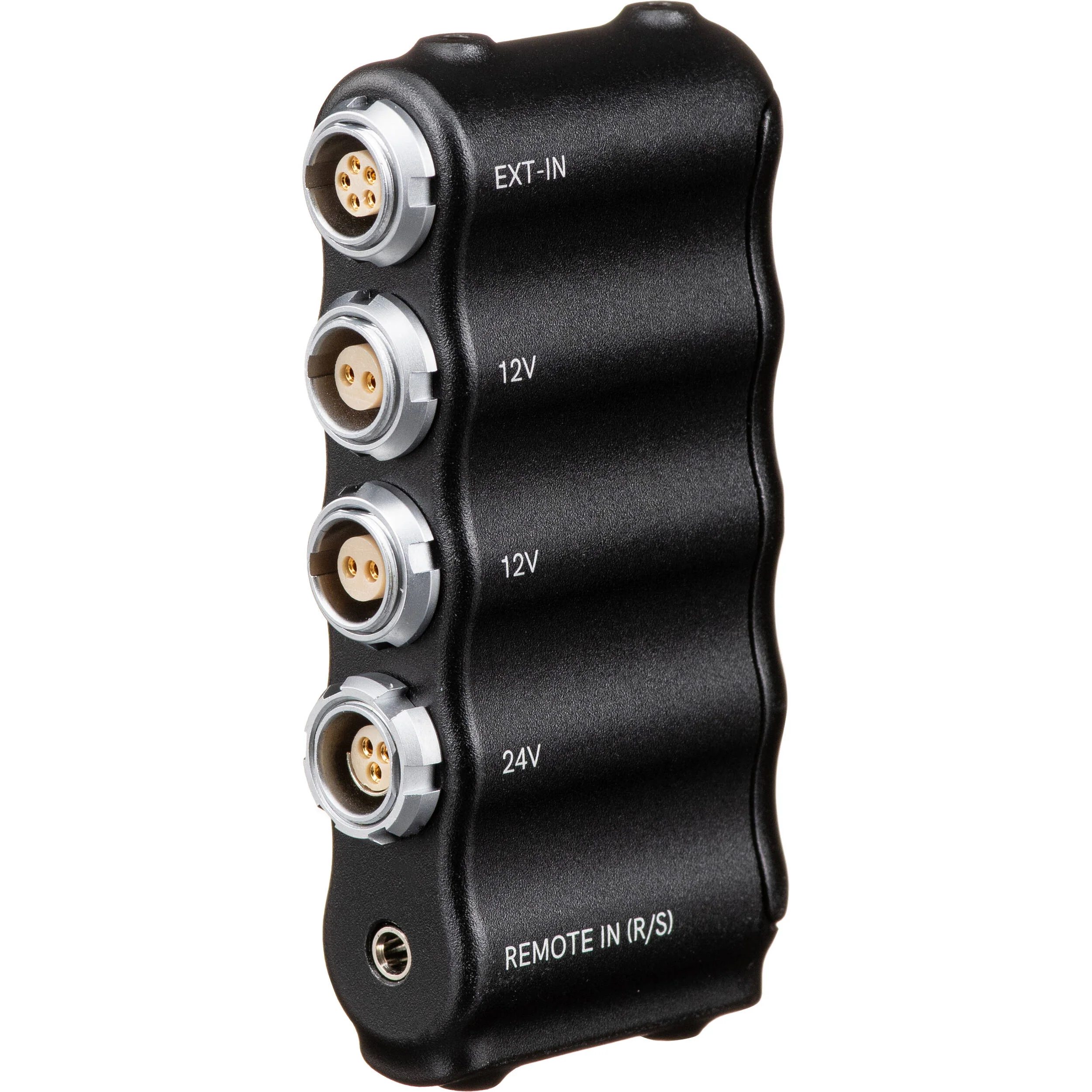

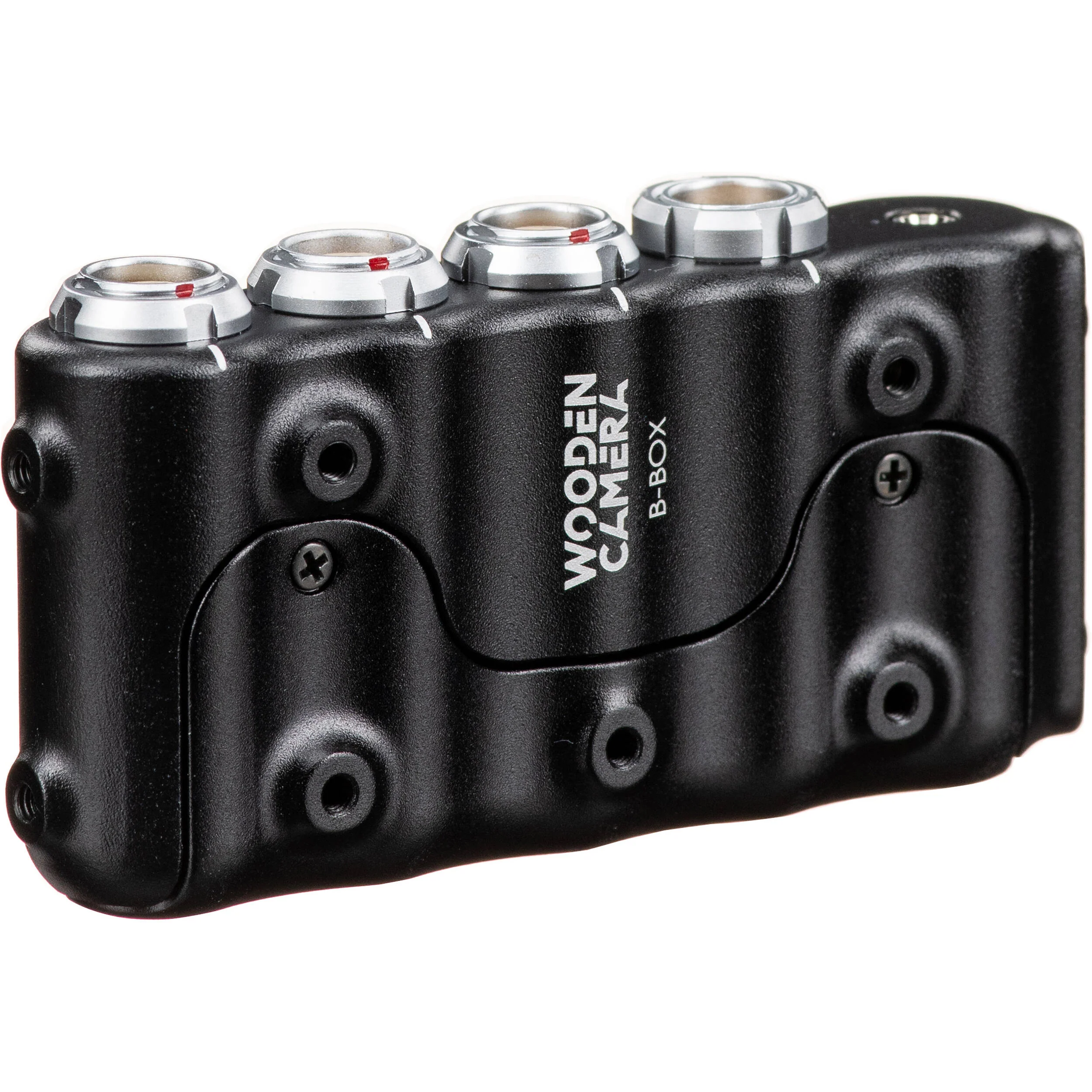

The B-Box from Wooden Camera is a power breakout box extension for the D-Box for the Sony BURANO cinema camera. The B-Box plugs into the D-Box using a separately available 5-pin remote cable and draws power from the D-Box, and it provides two 12V 2-pin ports and a 24V 3-pin port. A 3.5mm LANC remote input can extend the run/stop control to the 3-pin port using a separately available remote cable. The B-Box can be mounted onto a cage or camera plate using a separately available Bold-On Side Mount.
In the Box
- Wooden Camera B-Box for Sony BURANO
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera A00592Specs
| Power Output |
LEMO 2-Pin: 12 VDC
Fischer 3-Pin: 24 VDC |
| Camera Power Method |
Connector
|
| Power Input |
XLR 5-Pin Female: VDC
|
| Power Output |
LEMO 2-Pin: 12 VDC
Fischer 3-Pin: 24 VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
2x LEMO 2-Pin Female
1x Fischer 3-Pin Female |
| Dimensions |
2.9 x 1.8 x 0.9" / 73 x 46 x 24Ā mm
|
| Weight |
1.81Ā oz / 51.26Ā g
|
| Package Weight |
0.125 lb
|
| Box Dimensions (LxWxH) |
2.9 x 1.7 x 0.65"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
