Wooden Camera Micro Battery Slide Plate with Dual 15mm Rod Clamp (Gold Mount)
Wooden Camera A00346 Overview

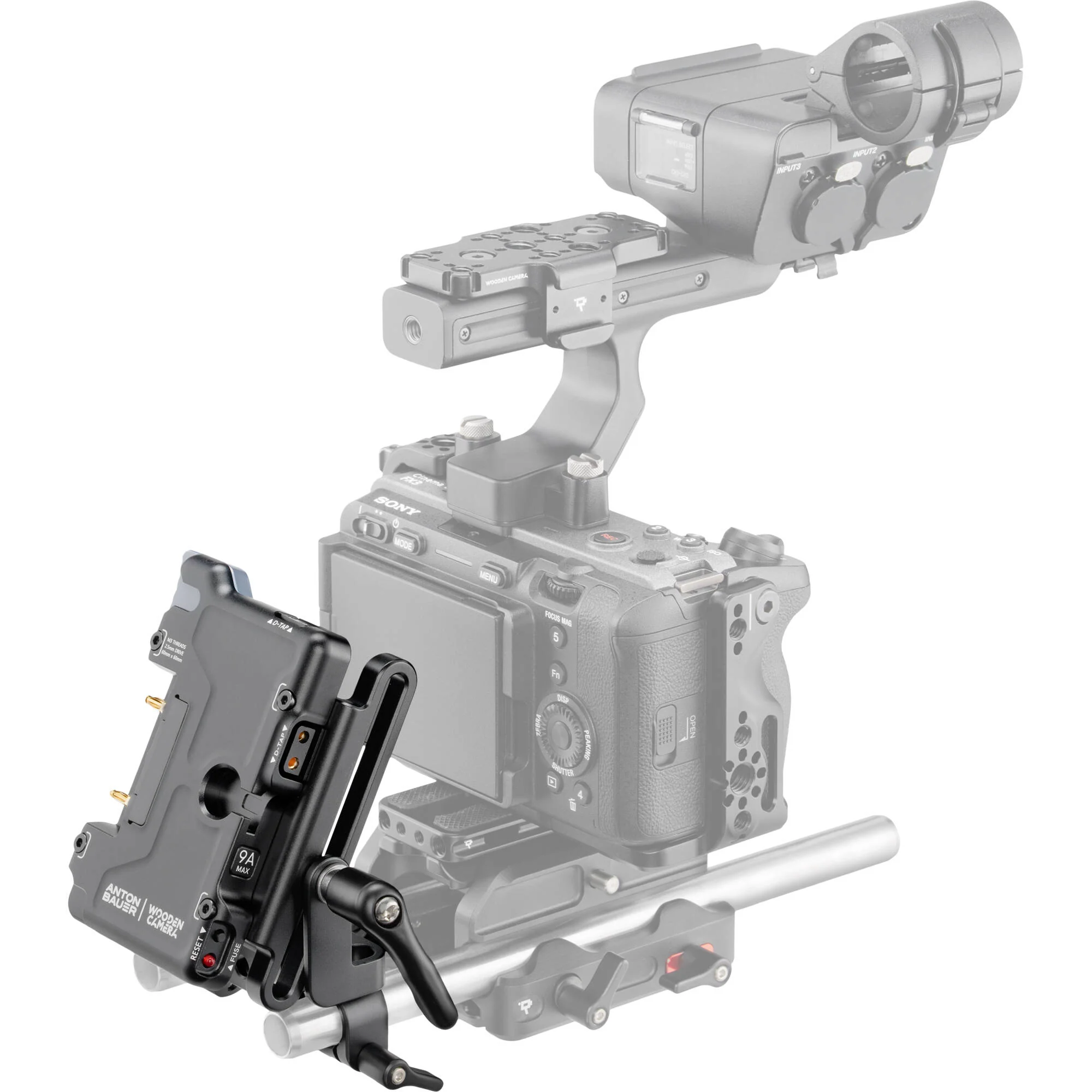

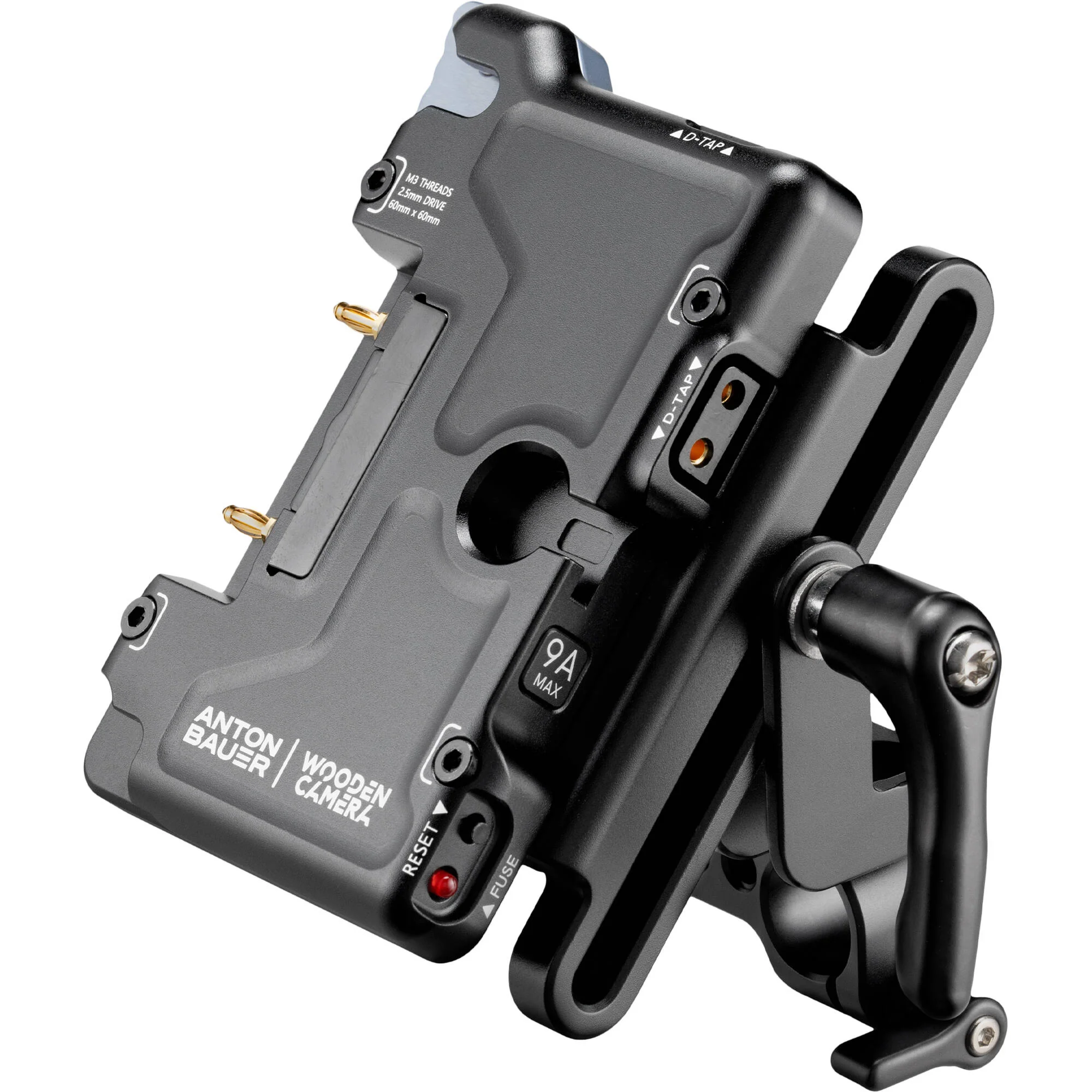

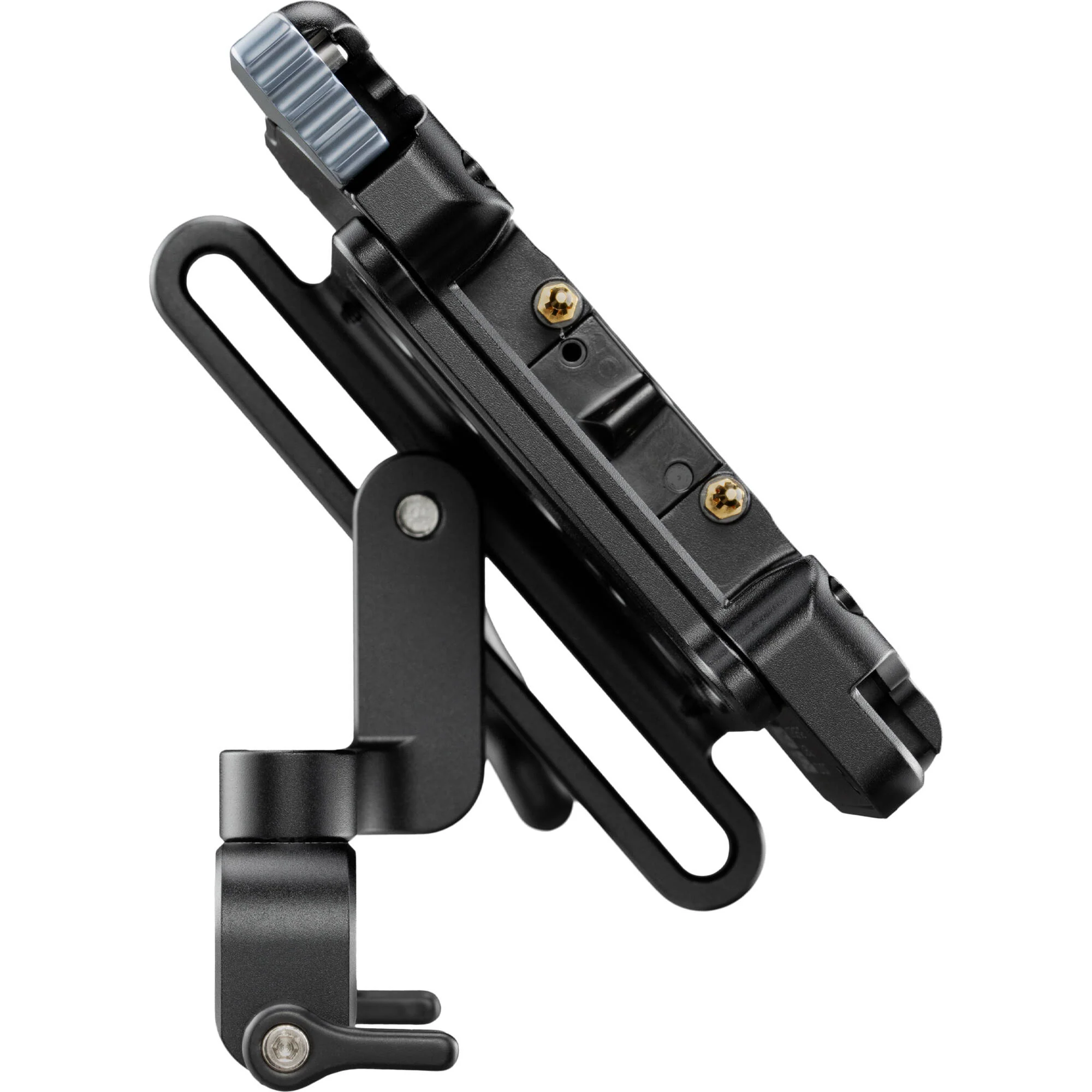

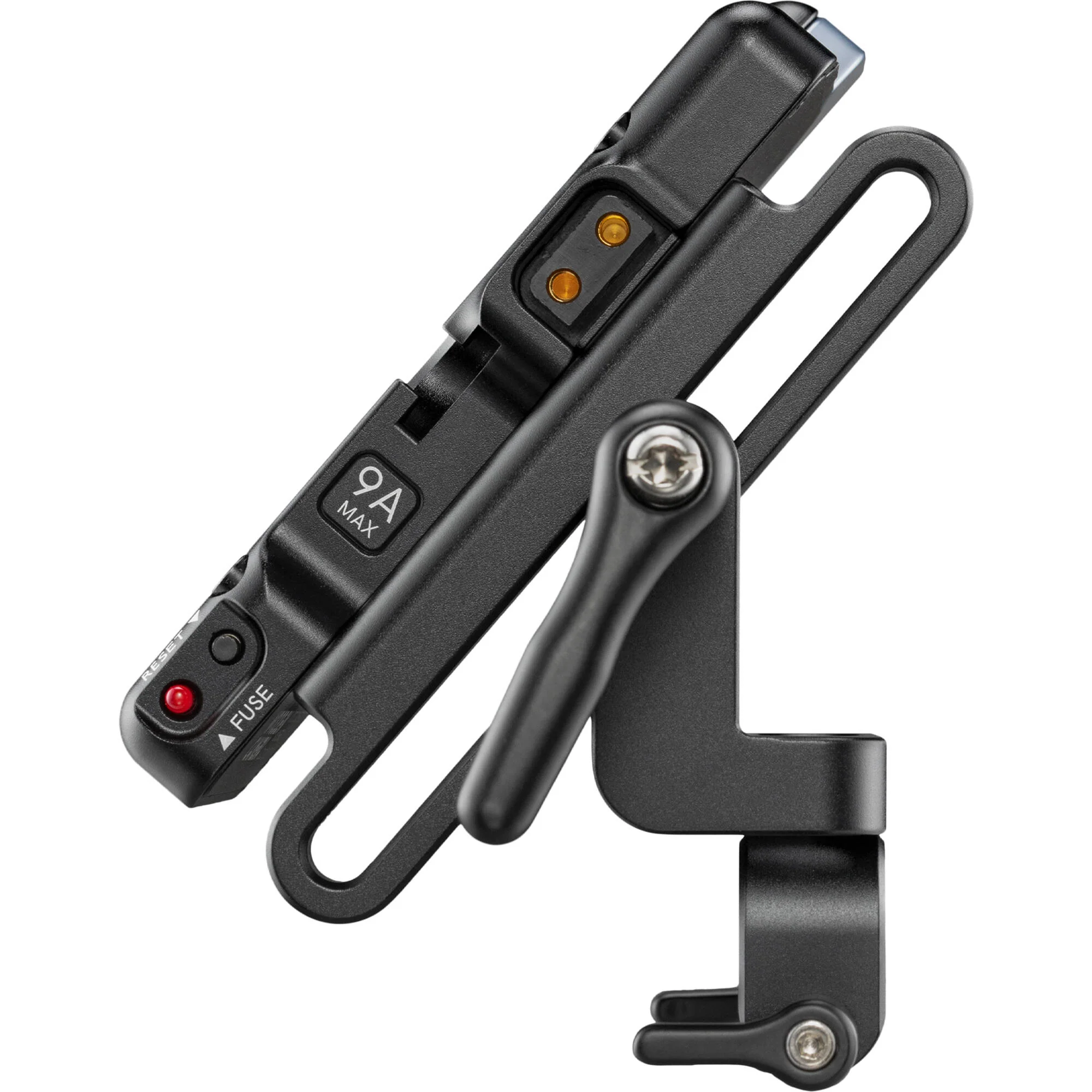

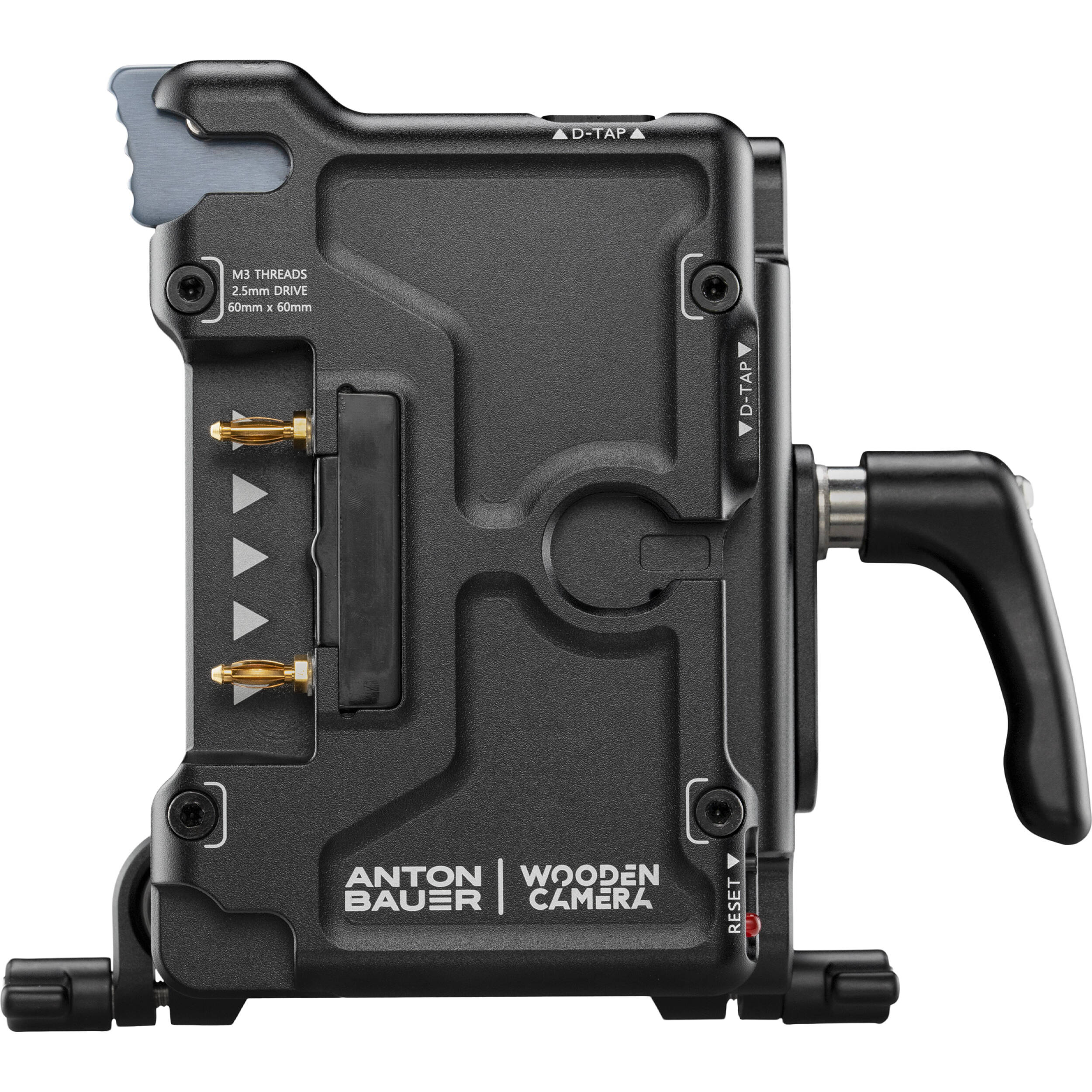

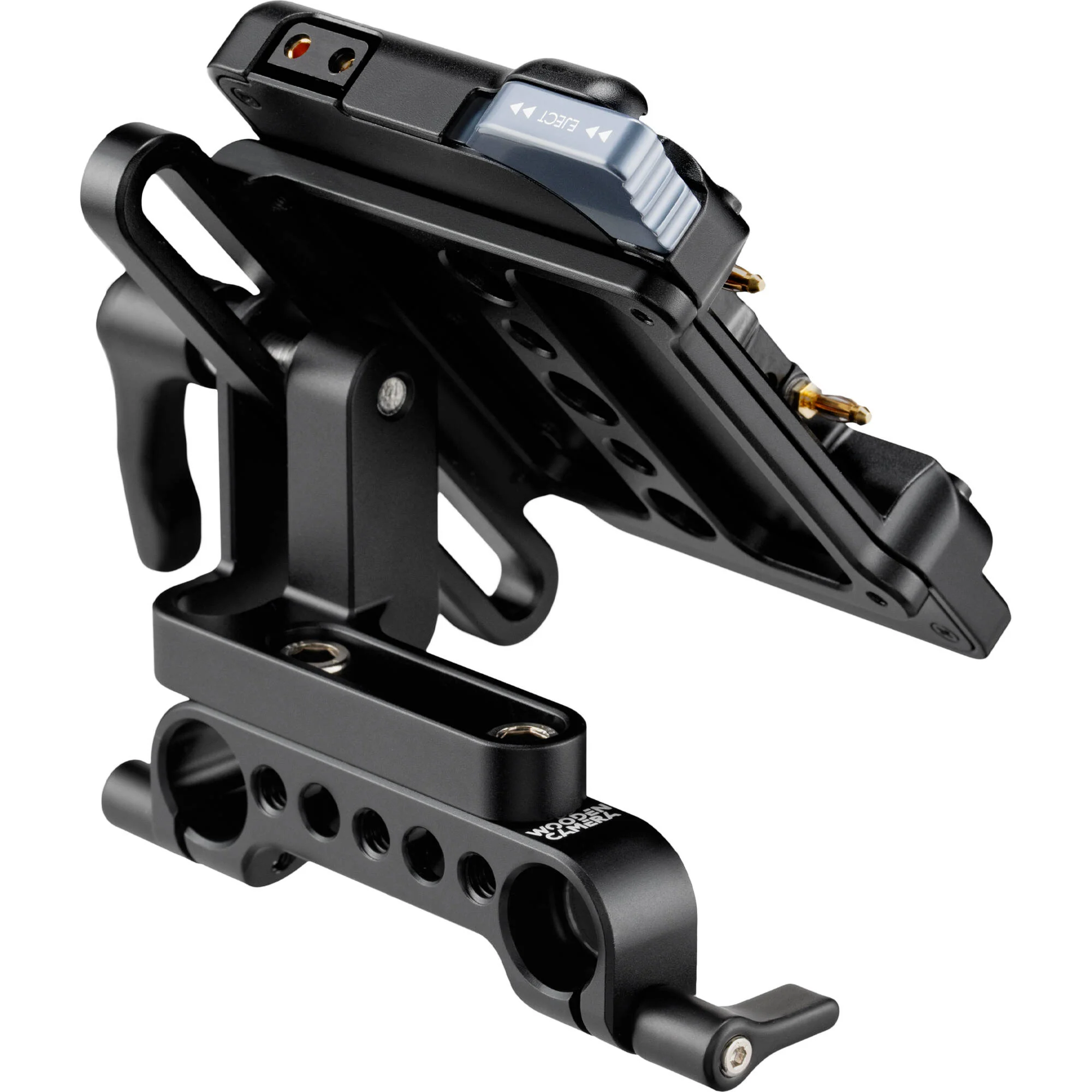

Power your camera and accessories with a Gold mount battery using this Micro Battery Slide Plate with Dual 15mm Dual Rod Clamp from Wooden Camera. The battery plate itself can slide up and down and be tightened in place using the attached lever for optimal placing on your rig. Two D-tap ports take power from your attached Gold mount battery and deliver it to your camera or accessories of your choice. The plate features a 9A fuse that can be reset as needed. A dual 15mm rod clamp attaches the plate to your shoulder- or tripod-mounted rig. Multiple 1/4"-20 and 3/8"-16 threads on the back of the plate and on the rod clamp accommodate additional accessories.
In the Box
- Wooden Camera Micro Battery Slide Plate with Dual 15mm Rod Clamp (Gold Mount)
- Limited 1-Year Manufacturer Warranty
Wooden Camera A00346 Specs
| Maximum Load |
9 A
|
| Power Output |
D-Tap: VDC
|
| Plate Front / Battery Mount |
Micro Gold Mount
|
| Power Input |
Micro Gold Mount: VDC
|
| Maximum Load |
9 A
|
| Power Output |
D-Tap: VDC
|
| Plate Front / Battery Mount |
Micro Gold Mount
|
| Plate Rear Mount |
15 mm Rod Clamp
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
1/4"-20 Female, 3/8"-16 Female
|
| Indicator |
LED
|
| Dimensions |
5.1 x 4.3 x 2" / 130 x 108 x 50Ā mm
|
| Weight |
9.2Ā oz / 261.6Ā g
|
| Package Weight |
0.98 lb
|
| Box Dimensions (LxWxH) |
7.3 x 5.4 x 3.2"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
