ALPHA WIRE 6012L SL005 Multipair Cable, Control, Screened, 6 Pair, 22 AWG, 0.35 mm², 100 ft, 30.5 m
ALPHA WIRE 6012L SL005 Multipair Cable, Control, Screened, 6 Pair, 22 AWG, 0.35 mm², 100 ft, 30.5 m
Product Overview

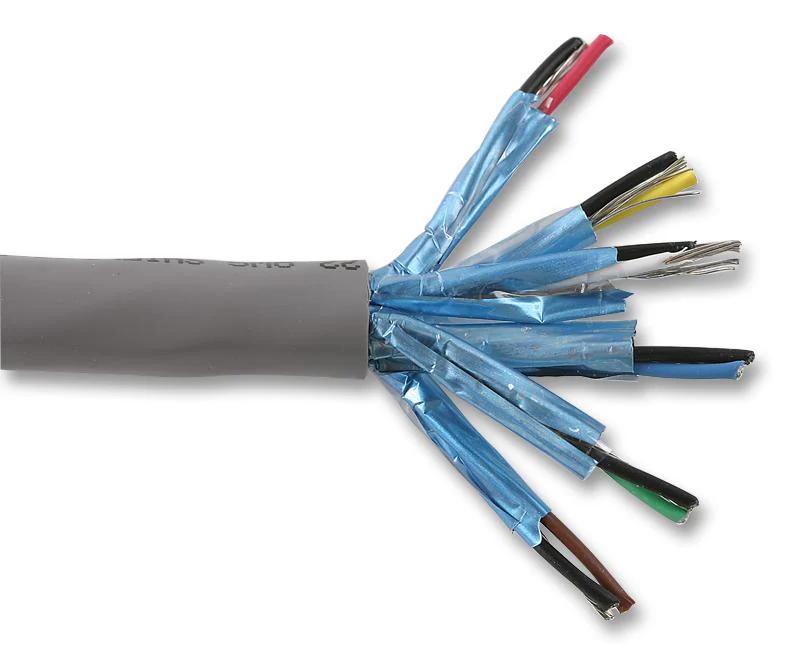

The 6012L SL005 is a 100ft 6-pair foil-shield low-smoke zero-halogen Communication and Control Cable with stranded tinned copper conductors. The cable combines LSZH rated insulation and a jackets with the rugged performance. The specially formulated LSZH material minimizes the effects from smoke and harmful corrosive gases in the event of combustion. Low smoke means easier visibility in exiting the area and reduced danger of smoke inhalation, while low toxicity means no harm to people from halogenated gases.
- CPR: Not Yet Qualified
- LSZH materials for low-smoke properties and reduced toxicity
- Tinned copper conductors resist corrosion
- Stranded conductors for installation flexibility
- Multi-conductor and multi-pair configurations
- Foil shielded for EMI protection and improved signal integrity
- 99lb Maximum pull tension
- 48? Characteristic impedance
- 43pf/ft at 1kHz Mutual capacitance (nominal)
- 0.19ĀµH/ft Nominal inductance
- -20 to 75Ā°C Temperature range
Applications
Audio, Communications & Networking, Computers & Computer Peripherals, Security, Automation & Process Control, Sensing & Instrumentation, Industrial
Product details
Other details
| Brand | ALPHA WIRE |
| Part Number | 6012L SL005 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
