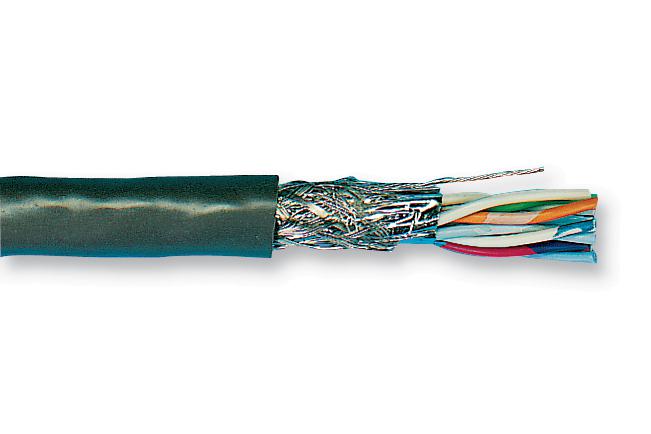

Belden 8102.01152 Multipair Cable Computer Screened 2 Pair 24 AWG 0.2 mm² 498.69 ft 152.4 m

The 8102 060500 is a 500ft 2-pair 4-conductor low capacitance shielded Computer Cable with tinned copper conductors with foam high density polyethylene insulation. It has an outer shield of 100% aluminium foil-polyester tape with shorting fold coverage and 65% TC braid coverage.

• CPR: Eca
• 27.5lb Maximum recommended pulling tension
• 100R Impedance
• 1.8A at 25°C Current per conductor
• -30 to 80°C Operating temperature range

Applications

Computers & Computer Peripherals, Communications & Networking

Product details

Cable Shielding	Screened
No. of Pairs	2 Pair
Wire Gauge	24AWG
Conductor Area CSA	0.2mm²
Reel Length (Imperial)	498.69ft
Reel Length (Metric)	152.4m
Jacket Colour	Chrome
No. of Max Strands x Strand Size	7 x 0.2mm
Voltage Rating	300V
Jacket Material	PVC
Conductor Material	Tinned Copper
External Diameter	6.9mm
Product Range	-

Other details

Brand	BELDEN
Part Number	8102.01152
Quantity	Reel of 152
Technical Data Sheet EN
