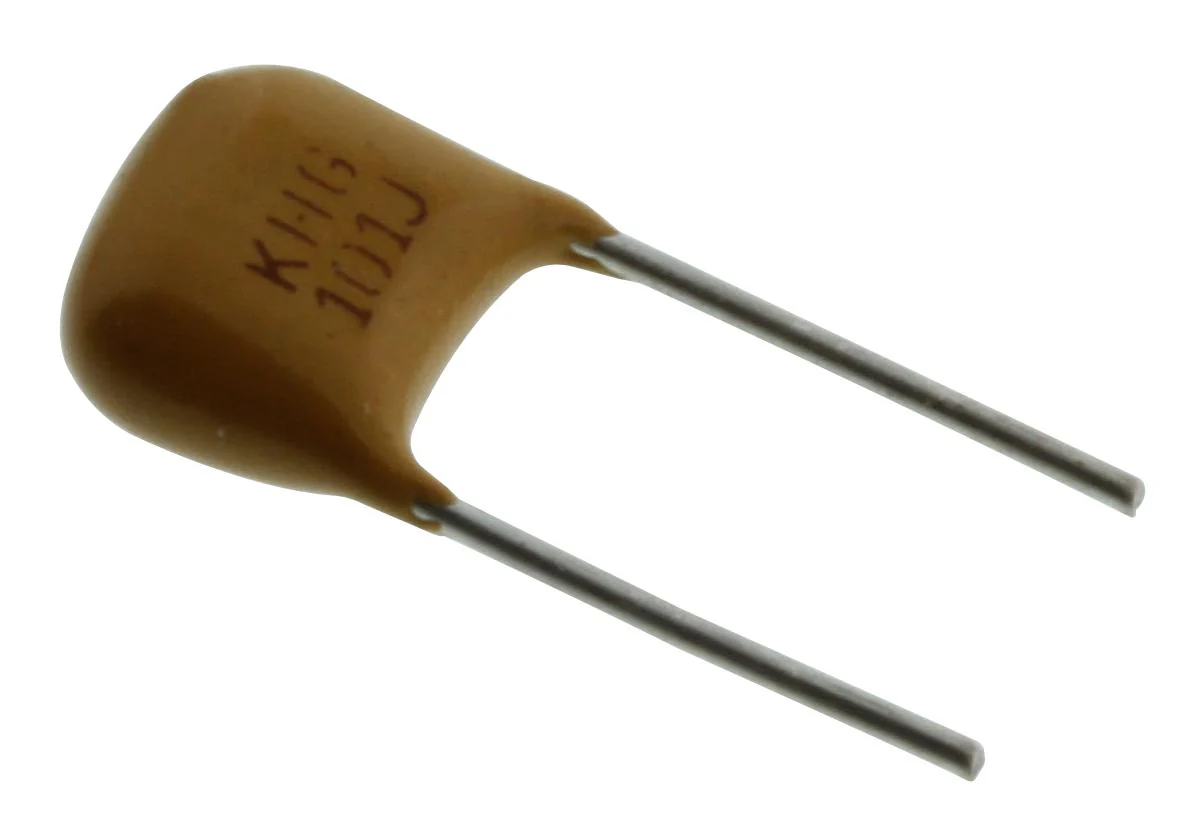

Kemet C330C101JHG5TA Multilayer Ceramic Capacitor Gold Max 100 pF 3 kV ± 5% Radial Leaded C0G / NP0 5.08 mm
Kemet C330C101JHG5TA Multilayer Ceramic Capacitor Gold Max 100 pF 3 kV ± 5% Radial Leaded C0G / NP0 5.08 mm
KEMET's 300 Goldmax HV series are conformally coated radial leaded, commercial grade, high voltage Goldmax multilayer ceramic capacitors with class I, C0G dielectric material. These capacitors offer low ESR at high frequencies and find conventional use as snubbers or filters in applications such as switching power supplies. These are also used in high voltage coupling, DC blocking, lighting ballasts, voltage multiplier circuits, DC/DC converters and coupling capacitors in cuk converters.
- Capacitance value range from 10pF to 0.033µF
- Available voltage ratings are 500V, 630V, 1KV, 1.5KV, 2KV, 2.5KV and 3KV
- Available in ±1%, ±2%, ±5% and ±10% tolerance
- Matte tin plated lead finish, excellent solderability
- Dimension is 7.62mm x 9.14mm (L x H)
- 5.08mm pitch spacing
- Conformal coated
- High thermal stability and high ripple current capability
- Operating temperature range from -55°C to 125°C
- Flammability rating meets UL94 V-0
Other details
| Brand | KEMET |
| Part Number | C330C101JHG5TA |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
