Molex 15136-0501 Cable Assembly Microclasp Receptacle to 5 Ways 2 mm 1 Row 100

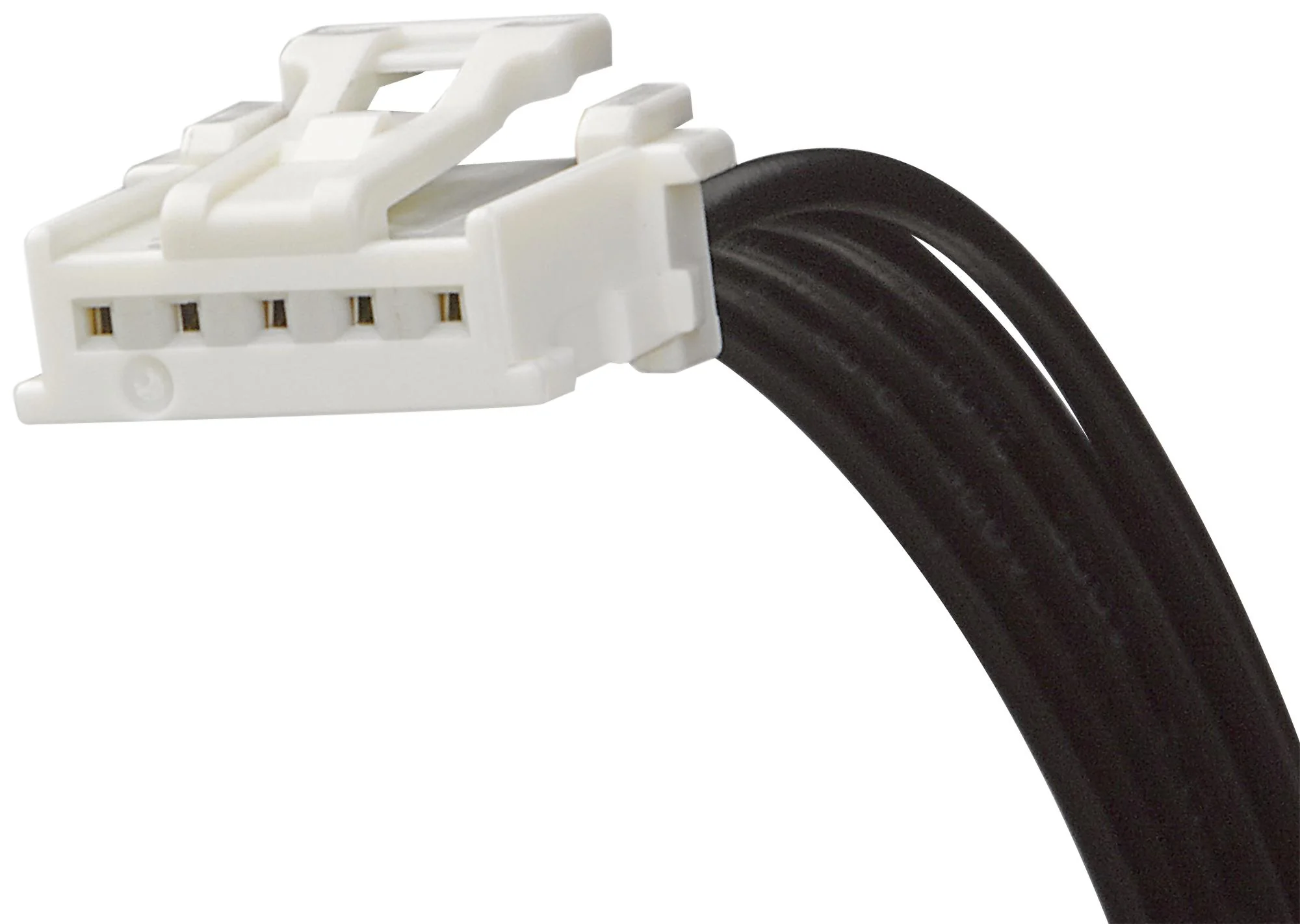

The 15136-0501 from Molex is a MicroClasp� to MicroClasp� Off-the-Shelf (OTS) receptacle cable assembly with 100mm cable length and 5 loaded circuits. This cable assembly mates with 55932 vertical header, 55935 right angle header and use with 56134 series terminals. This MicroClasp� cable assembly capable of carrying a maximum 3A of current with 2mm pitch which provides space savings and easy mating/ unmating compared to similar 2mm and 2.5mm pitch wire-to-board systems. The pin to pin mapping from receptacle to PCB header provides ready to use, plug and play connections. It is assembled in ISO/TS16949 certified facilities which ensures high quality and meets current automotive industry standards. Typical application include consumer, commercial vehicle, industrial and medical.
- Female-female, single row dual ended connector configuration
- Tin plated phosphor bronze metal, tin termination plating
- White colour nylon resin
- 250V AC (RMS)/DC maximum voltage
- Lock to mating part
- Durability of 30 cycles
- Operating temperature range from -25°C to 85°C
- UL 1061 approved
- Wire size of 22AWG
Other details
| Brand | MOLEX |
| Part Number | 15136-0501 |
| Quantity | Each |
| Drawing EN |  |
| Manufacturer Product Page EN | |
