PHOENIX CONTACT 0712275 Thermal Circuit Breaker, CLIPLINE, 6 A, 1 Pole, 65 VDC, 250 VAC, DIN Rail GTIN UPC EAN: 4017918848392 TCP 6A
PHOENIX CONTACT 0712275 Thermal Circuit Breaker, CLIPLINE, 6 A, 1 Pole, 65 VDC, 250 VAC, DIN Rail GTIN UPC EAN: 4017918848392 TCP 6A

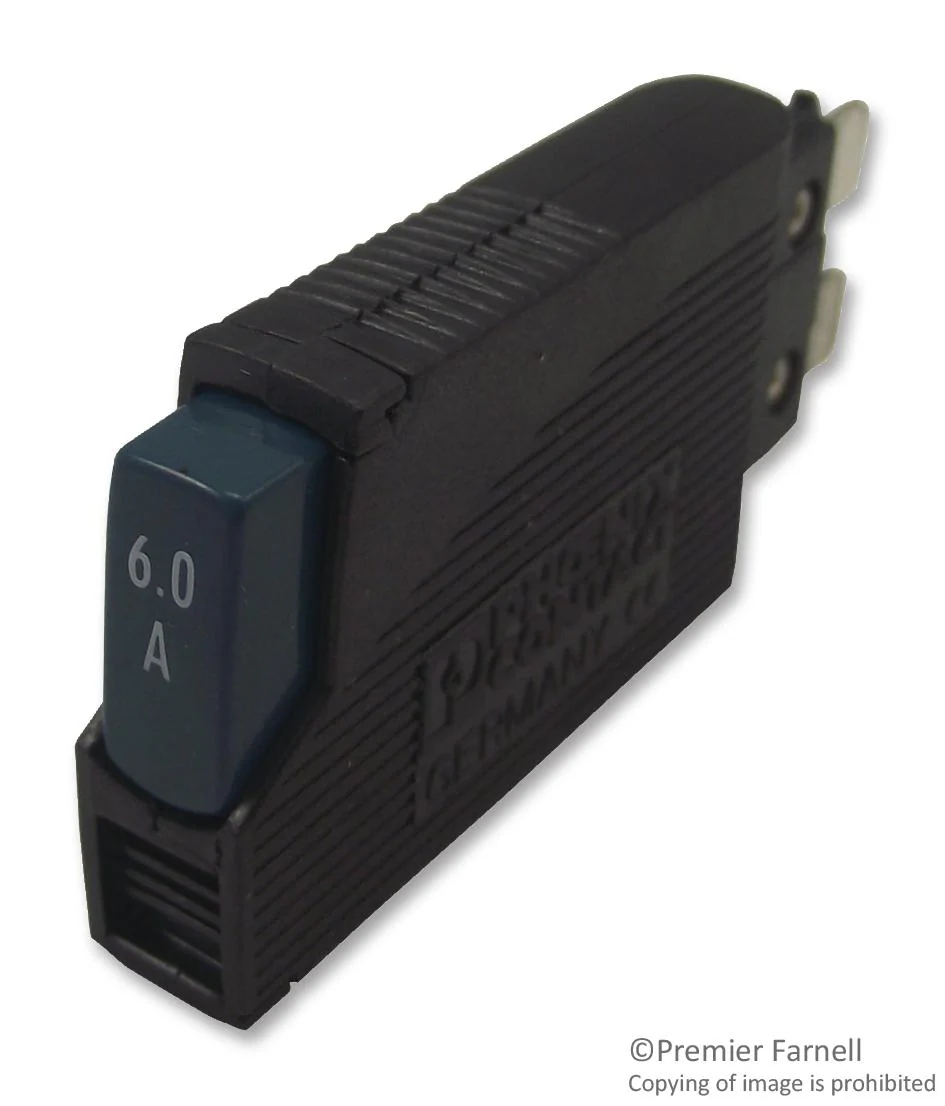

The 0712275 is a 1-pole 6A black DIN Rail Thermal Miniature Circuit Breaker with PPS insulation. The TCP series circuit breaker block consists of one fuse terminal block and 4 feed-through terminal blocks. The integrated switching function enables immediate reclosure and therefore ensures the availability of the system. It has short circuit switching capacity of 48A at 250VAC voltage.
- Compact design
- -20 to +60Ā°C Ambient temperature range
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Product Range: CLIPLINE |
| Current Rating: 6A |
| No. of Poles: 1 Pole |
| Voltage Rating VDC: 65VDC |
| Voltage Rating VAC: 250VAC |
| Circuit Breaker Mounting: DIN Rail |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 0712275 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$25.20
PHOENIX CONTACT 0712275 Thermal Circuit Breaker, CLIPLINE, 6 A, 1 Pole, 65 VDC, 250 VAC, DIN Rail GTIN UPC EAN: 4017918848392 TCP 6Aā
$25.20
PHOENIX CONTACT 0712275 Thermal Circuit Breaker, CLIPLINE, 6 A, 1 Pole, 65 VDC, 250 VAC, DIN Rail GTIN UPC EAN: 4017918848392 TCP 6A
The 0712275 is a 1-pole 6A black DIN Rail Thermal Miniature Circuit Breaker with PPS insulation. The TCP series circuit breaker block consists of one fuse terminal block and 4 feed-through terminal blocks. The integrated switching function enables immediate reclosure and therefore ensures the availability of the system. It has short circuit switching capacity of 48A at 250VAC voltage.
- Compact design
- -20 to +60Ā°C Ambient temperature range
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Product Range: CLIPLINE |
| Current Rating: 6A |
| No. of Poles: 1 Pole |
| Voltage Rating VDC: 65VDC |
| Voltage Rating VAC: 250VAC |
| Circuit Breaker Mounting: DIN Rail |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 0712275 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
