Pomona 72962 72962 RF / Coaxial Connector SMA Straight Flanged Jack Crimp 50 ohm Beryllium Copper

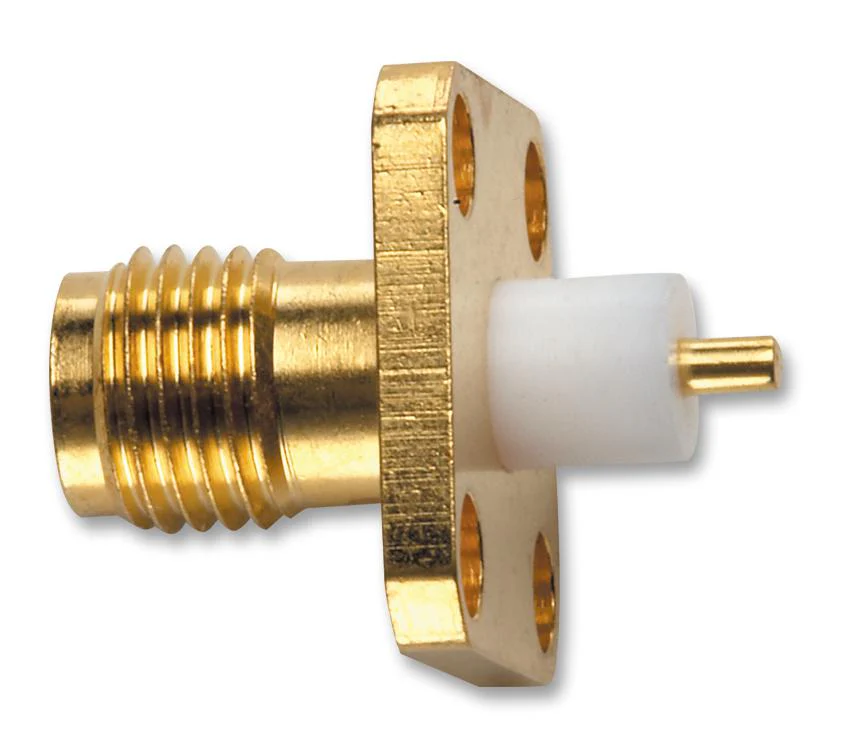

The 72962 is a 4-hole SMA Panel Jack with gold-plated beryllium copper contact. It features high bandwidth, small size and durability for confident connections. This receptacle comes with a high quality PTFE insulator, gold/nickel plated copper crimp ferrule and silicone rubber gasket.

• Body is machined brass with gold plated finish
• Meets MIL-C-39012, IEC 169-15 and CECC 22110 standards
• Small size and durability for mobile communications
• Precision machined and gold-plated for low loss
• >5000MR Insulation resistance
• <500V Peak working voltage
• 1000VRMS Dielectric withstanding voltage

Applications

RF Communications, Aerospace, Defence, Military

Other details

Brand	POMONA
Part Number	72962
Quantity	Each
Technical Data Sheet EN
