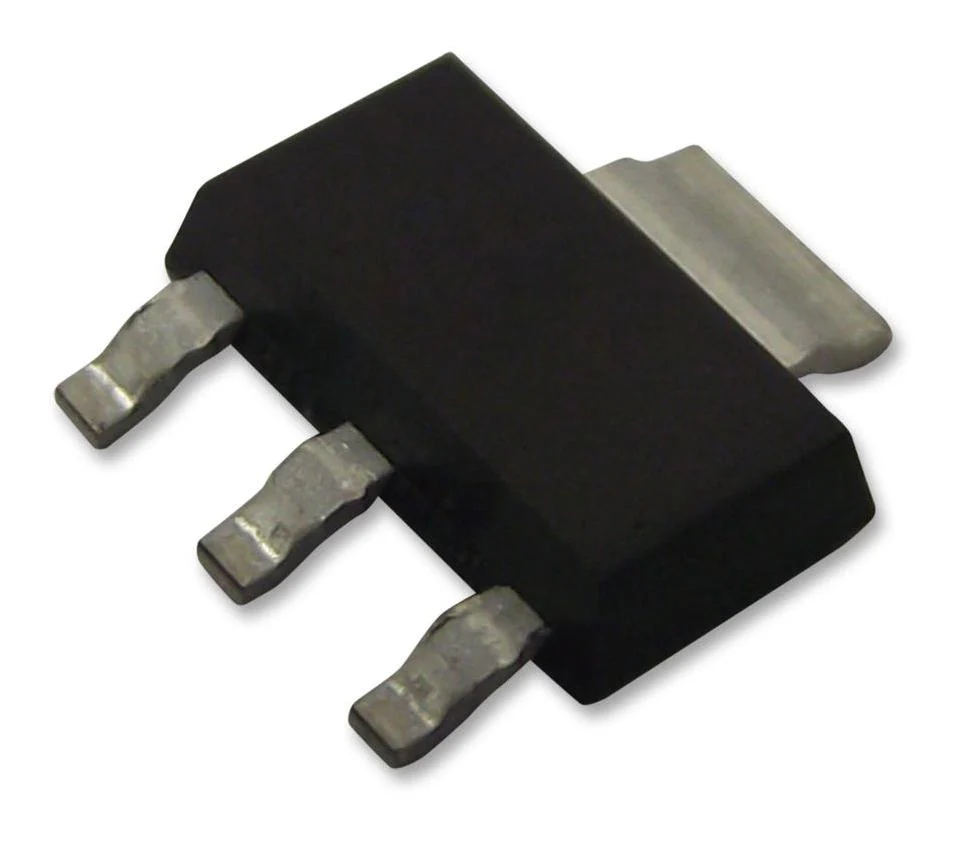

Diodes INC. ZXMN7A11G ZXMN7A11G Power Mosfet N Channel 70 V 3.8 A 0.13 ohm SOT-223 Surface Mount

The ZXMN7A11G is a N-channel enhancement-mode MOSFET with moulded plastic case and solderable matte tin-finish annealed over copper lead-frame terminals as per MIL-STD-202 standard. This new generation of Trench MOSFET from Zetex utilizes unique structure that combines the benefits of low ON-resistance with fast switching speed. This makes them ideal for high efficiency and low voltage applications.

• Low threshold
• Low gate drive
• Halogen-free, Green device
• Qualified to AEC-Q101 standards for high reliability
• Moisture sensitivity level 1 as per J-STD-020
• UL94V-0 Flammability rating

Applications

Power Management, Motor Drive & Control, Aerospace, Defence, Military, Automotive, Audio

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	DIODES INC.
Part Number	ZXMN7A11G
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
