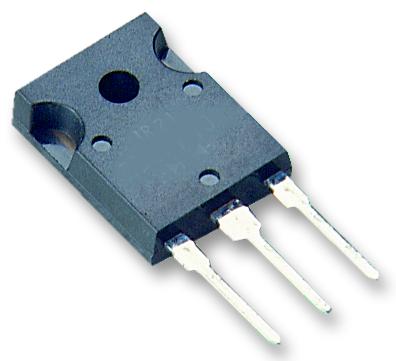

IXYS SEMICONDUCTOR DSP25-16A Standard Recovery Diode, 1.6 kV, 28 A, Dual Series, 700 mV, 300 A
IXYS SEMICONDUCTOR DSP25-16A Standard Recovery Diode, 1.6 kV, 28 A, Dual Series, 700 mV, 300 A
The DSP25-16A is a Standard Rectifier features planar passivated chips, very low leakage current and very low forward voltage drop. This rectifier is suitable for single- and three-phase bridge configurations.
- Improved thermal behaviour
- 0.81V Threshold voltage
- 13.8mR Slope resistance
- 160W at 25Ā°C Total power dissipation
- 10pF at 400V/1MHz Junction capacitance
- Epoxy meets UL94V-0
Applications
Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage: 1.6kV |
| Average Forward Current: 28A |
| Diode Configuration: Dual Series |
| Forward Voltage Max: 700mV |
| Reverse Recovery Time: - |
| Forward Surge Current: 300A |
| Operating Temperature Max: 180Ā°C |
| Diode Case Style: TO-247AD |
| No. of Pins: 3Pins |
| Product Range: DSP25 |
| Qualification: - |
Other details
| Brand | IXYS SEMICONDUCTOR |
| Part Number | DSP25-16A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
