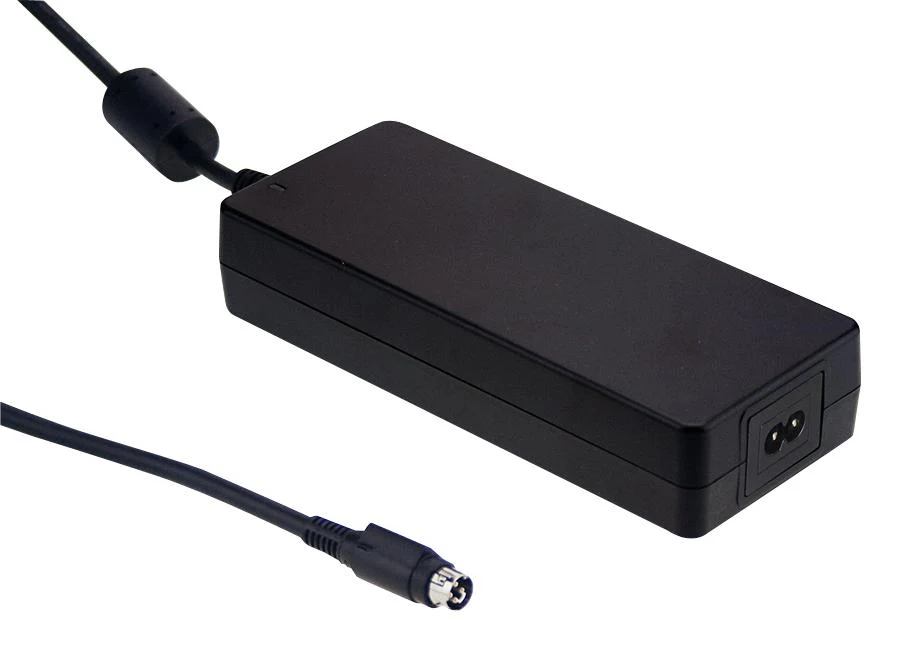

MEAN WELL GSM160B12-R7B AC/DC Power Supply, Medical, 1 Output, 138 W, 12 VDC, 11.5 A
GSM160B12-R7B is a GSM160B series 160W AC to DC reliable green medical desktop adapter with active PFC. This product is equipped with a 2 pin standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The circuitry design meets the international medical standards ( 2 x MOPP) having an ultra low leakage(100ĀµA) fitting the medical devices in direct electrical contacts with patients. Typical applications include mobile clinical workstation, oral irrigator, portable haemodialysis machine, breathe machine and medical computer monitor.
- Output 20VDC at 8A with DIN 4 pin plug with lock, 92.5% efficiency
- Ripple and noise is 120mVpp
- Extremely low leakage current
- No load power consumption is less than 0.15W
- Energy efficiency level VI and meet CoCVersion 5
- Wide operating temperature range from -30 to 70Ā°C
- Short circuit/overload/overvoltage/over temperature
- LED indicator for power ON
- Lifetime 110K hours
- Medical safety approved according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | MEAN WELL |
| Part Number | GSM160B12-R7B |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
