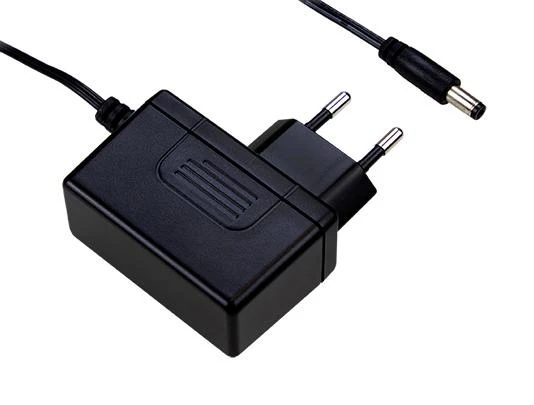

MEAN WELL GSV30E12-P1J AC/DC Power Supply, LED Lighting, 1 Output, 30 W, 12 V, 2.5 A
GSV30E12-P1J is a GSV30 series external wall-mounted LED power supply with PFC function. The design of this product is based on the plug and play concept for adaptors. The AC input side exploits the 2-pole (Class II, no FG) standard plug, and the output side is equipped with the highly accepted DC connector (2.1 x 5.5 x 11mm) in the market. The design complies with the lighting requirements of EMI BS EN/EN55015 and the harmonic current demand according to BS EN/EN61000-3-2 class C. In addition the no load power consumption is less than 0.5W, making GSV30 conform to the ErP regulation required by European Union for lighting systems as well. Typical applications are LED strip lighting, indoor LED lighting, LED decorative lighting, commercial lighting, mirror lighting, table light, portable lighting.
- AC 180~264V input, class II /2 power unit, no FG
- Built-in active PFC function with EN61347-1 regulation
- Constant voltage design
- Protections: short circuit / overload / overvoltage
- Cooling by free air convection, no load power consumption 0.5W
- 3 years warranty
- 30W output power, 12V output voltage
- 2.5A output current
- Input voltage rating is 180 - 264V
- Dimension is 32mm width x 47.5mm height x 75.5mm depth
Product details
| Power Supply Applications: LED Lighting |
| No. of Outputs: 1 Output |
| Output Power Max: 30W |
| Output Voltage - Output 1: 12V |
| Output Current - Output 1: 2.5A |
| Output Voltage - Output 2: -888V |
| Output Current - Output 2: -888A |
| Output Connector: Barrel Plug Center Positive 2.1mm x 5.5mm x 11mm |
| Output Voltage - Output 3: -888V |
| Output Current - Output 3: -888A |
| Power Supply Output Type: Fixed |
| Input Voltage VAC: 180V AC to 264V AC |
| Product Range: GSV30 Series |
| Plug Type: EU |
Other details
| Brand | MEAN WELL |
| Part Number | GSV30E12-P1J |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
