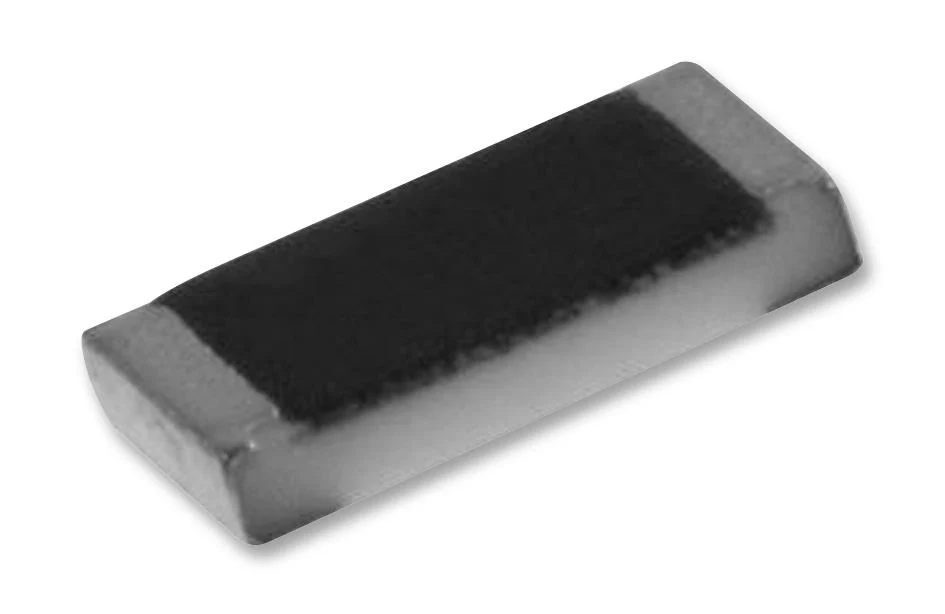

Neohm - TE Connectivity CPF0805B10RE1 SMD Chip Resistor 0805 [2012 Metric] 10 ohm CPF Series 100 V Thin Film mW

The TE Connectivity CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.

• EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
• Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
• ±0.1%, ±0.5% and ±1% tolerance
• Electroplated 100% matte Sn finish
• Operating temperature range -55°C to 125°C

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Product details

Resistor Case Style	0805 [2012 Metric]
Resistance	10ohm
Product Range	CPF Series
Voltage Rating	100V
Resistor Element Type	Thin Film
Power Rating	100mW
Resistance Tolerance	± 0.1%
Temperature Coefficient	± 25ppm/°C
Automotive Qualification Standard	-

Other details

Brand	NEOHM - TE CONNECTIVITY
Part Number	CPF0805B10RE1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Drawing EN
3D Product Image EN
