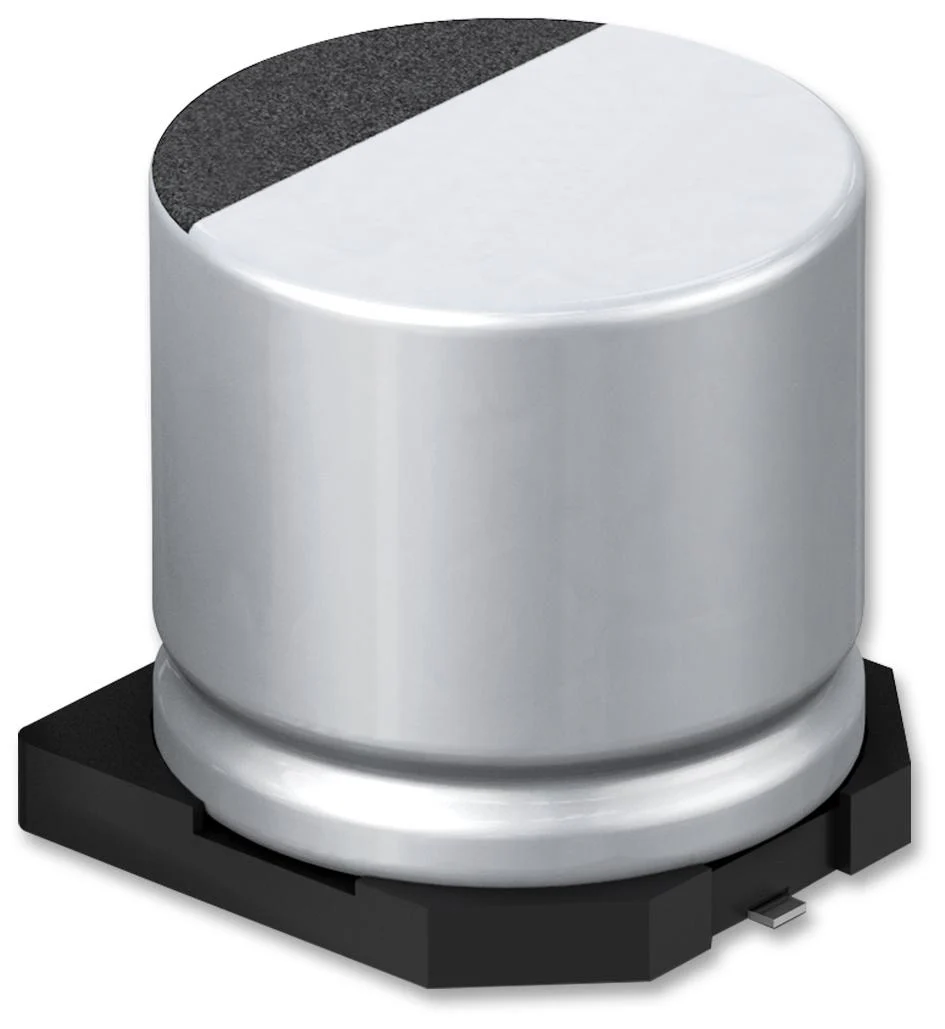

Panasonic EEEFKE181XSP SMD Aluminium Electrolytic Capacitor Radial Can - 180 µF 25 V 0.34 ohm

The FKS series Type V from Panasonic is a surface mount aluminium electrolytic capacitors. These high temperature lead free reflow capacitors have high reliability, long life, low impedance and high ripple current. The capacitance value ranges from 39µF to 1800µF.

• Automotive grade AEC-Q200 qualified
• Voltage rating range from 6.3VDC to 50VDC
• Capacitance tolerance is 20%
• Operating temperature range from -55°C to 105°C
• Endurance of 2000h at 105°C
• Capacitor size varies from 6.3mm x 5.8mm to 10mm x 10.2mm (D x L)

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	PANASONIC
Part Number	EEEFKE181XSP
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
CAD Multiple Formats EN
