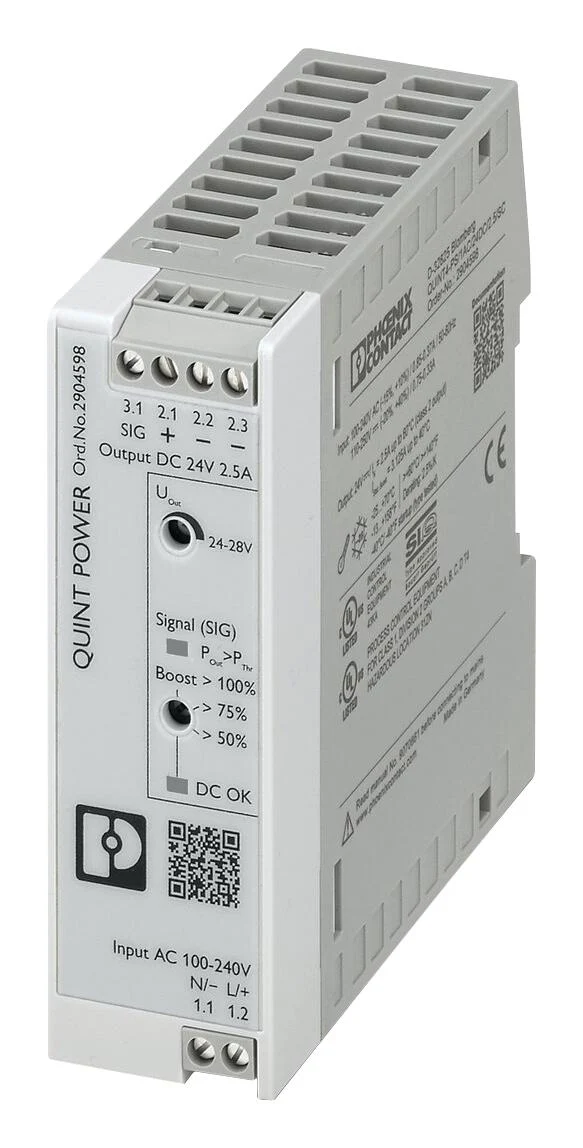

PHOENIX CONTACT 2904598 AC/DC DIN Rail Power Supply (PSU), Laboratory Equipment, 1 Output, 60 W, 24 VDC, 2.5 A QUINT4-PS/1AC/24DC/2.5/SC
PHOENIX CONTACT 2904598 AC/DC DIN Rail Power Supply (PSU), Laboratory Equipment, 1 Output, 60 W, 24 VDC, 2.5 A QUINT4-PS/1AC/24DC/2.5/SC
2904598 is a QUINT4-PS/1AC/24DC/2.5/SC primary-switched power supply unit. QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low-power range. Certified by EN 61000-3-2, IEC 61010-2-201 (SELV), IEC 61010-1 (SELV), IEC 61010-2-201 (PELV), IEC 61558-2-16 IEC 61010-2-201, IEC 61010-1, EN 61558-2-16, EN 61204-3, UL Listed UL 61010-1, UL listed UL 61010-2-201, ANSI/UL 121201 Class I, UL 1310 class 2 power units.
- Nominal input voltage range from 100VAC to 240VAC (-15 % to+10 %), nominal output voltage is 24VDC
- Nominal output current is 2.5A, output power is 60W, 75W, 120W
- Typical efficiency is 91.9% (120VAC), 92.6% (230VAC)
- Starting of heavy loads with dynamic boost, switching frequency range from 30 to 150kHz (PFC stage)
- Preventive function monitoring indicates critical operating states before errors occur
- High efficiency and long service life, with low power dissipation and low heating
- Space savings in the control cabinet due to a narrow, slim-line design
- IP20 degree of protection, screw input and output connection, plastic housing material
- Operating ambient temperature range from -25Ā°C to 70Ā°C
- Dimension(W x H x D) is 32 x 99 x 90mm
Product details
| Power Supply Applications: Laboratory Equipment |
| No. of Outputs: 1 Output |
| Output Power Max: 60W |
| Output Voltage - Output 1: 24VDC |
| Output Current - Output 1: 2.5A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Input Voltage VAC: 100V AC to 240V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Product Range: QUINT POWER Series |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 2904598 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
