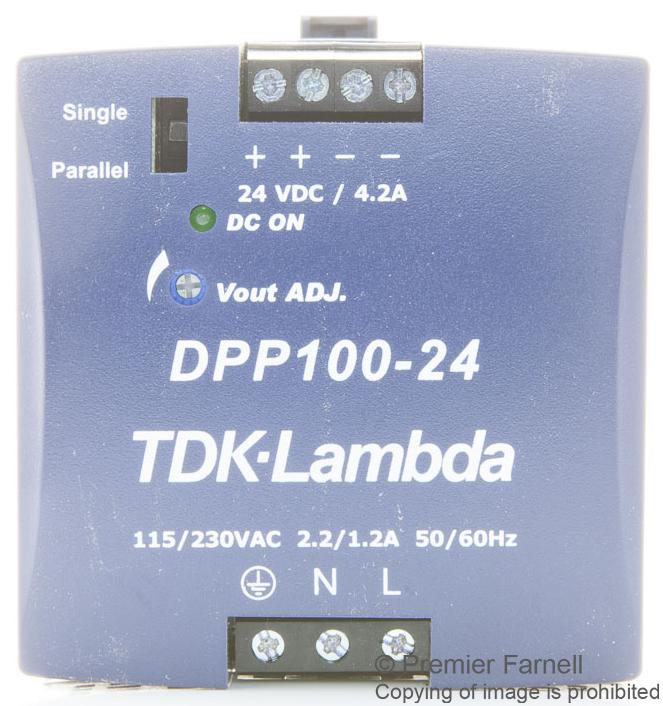

TDK-LAMBDA DPP100-24 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 100 W, 24 VDC, 4.2 A
TDK-LAMBDA DPP100-24 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 100 W, 24 VDC, 4.2 A
The DPP100-24 is a 24V/100W 1-output DIN-rail mount Power Supply features a compact size universal input, convection cooled, greater than 120% over-current protection 125 to 137.5%, cycle AC line to reset overvoltage protection. This power supply supports global use, easier system configuration and integration. This power supply output is fixed and can be adjustable.
- <50mV (20MHz bandwidth) Ripple/noise
- 87% Efficiency
- >20ms Hold-up time (115VAC input)
- -10 to 71Ā°C Operating temperature range
Applications
Industrial, Automation & Process Control, Test & Measurement
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 100W |
| Output Voltage - Output 1: 24VDC |
| Output Current - Output 1: 4.2A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Input Voltage VAC: 85V AC to 264V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Product Range: DPP Series |
Other details
| Brand | TDK-LAMBDA |
| Part Number | DPP100-24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
