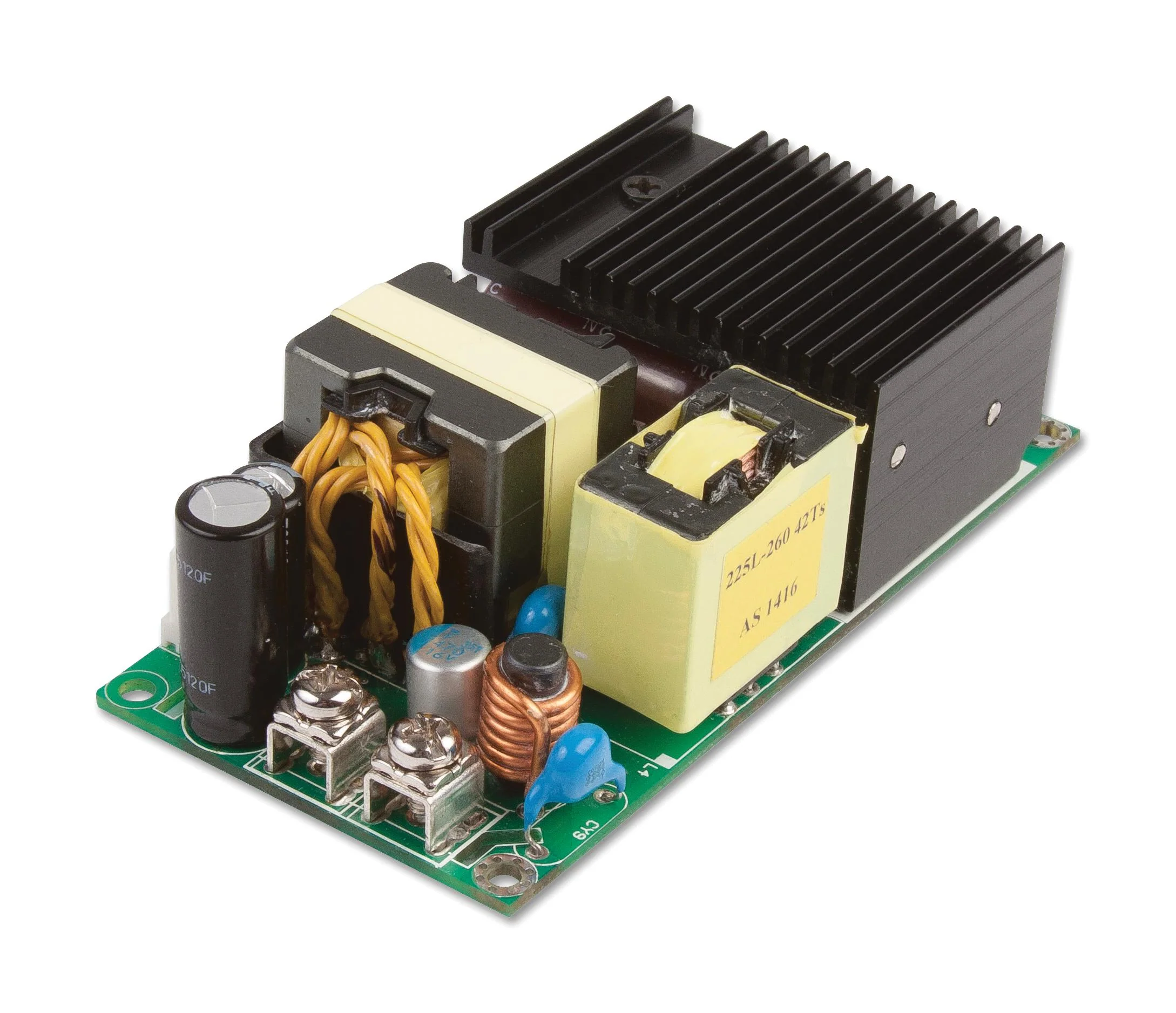

XP POWER EPL225PS12 AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 225W @ 10CFM, 150 W
XP POWER EPL225PS12 AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 225W @ 10CFM, 150 W
The EPL225 series maximises efficiency across the load range and minimises no load power consumption minimising heat dissipation, reducing running costs and enabling compliance with the latest environmental goals and legislation. Fully approved for ITE and Industrial applications the EPL225 provides up to 150W when convection cooled and up to 225W when force cooled at just 10 CFM. A 12V / 0.5A fan supply is included to support force cooled applications. The small footprint, low profile, low noise and comprehensive safety agency approvals allow this versatile product to be used in a wide range of ITE and industrial applications
- 225W Forced Cooled (10CFM)
- 150W Convection Cooled
- 2" x 4" Footprint
- High efficiency, up to 95%
- Low Profile, 1.26"
- ITE & Medical Approvals
- 12V Fan Output
- Less Than 0.5W No load input power
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Power Management, Industrial, Medical
Product details
| Power Supply Applications: ITE & Medical |
| No. of Outputs: 1 Output |
| Power Rating (Forced Cooling): 225W @ 10CFM |
| Power Rating (Convection Cooling): 150W |
| Input Voltage VAC: 85V AC to 264V AC |
| Power Supply Output Type: Fixed |
| Output Voltage - Output 1: 12VDC |
| Output Current - Output 1: 12.5A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Product Range: EPL Series |
Other details
| Brand | XP POWER |
| Part Number | EPL225PS12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
