ANALOG DEVICES LTC2433-1CMS#PBF Analogue to Digital Converter, 16 bit, Differential, 3 Wire, Microwire, Serial, SPI, Single

LTC®2433-1 is a differential input micropower 16bit No Latency ??� analogue-to-digital converter with an integrated oscillator. It provides 0.12LSB INL and 1.45µV RMS noise independent of VREF. It uses delta-sigma technology and provides single conversion settling of the digital filter. Through a single pin, the LTC2433-1 can be configured for better than 87dB input differential mode rejection at 50Hz and 60Hz ±2%, or it can be driven by an external oscillator for a user-defined rejection frequency. The internal oscillator requires no external frequency setting components. Typical applications include direct sensor digitizer, weight scales, direct temperature measurement, gas analysers, strain-gauge transducers, instrumentation, data acquisition and industrial process control.

• Low supply current of 200µA, 4µA in auto-sleep
• Rail-to-rail differential input/reference
• 0.12LSB INL no missing codes and 0.16LSB full-scale error and 5µV offset
• 1.45µV rms noise, independent of Vref and very low transition noise of <lt/>0.02LSB
• Operates with a reference as low as 100mV with a 16bit resolution
• Internal oscillator-no external components required
• 87db min, simultaneous 50Hz and 60Hz notch filter
• Single supply 2.7V to 5.5V operation and pin compatible with the 20/24bit LTC2431/LTC2411

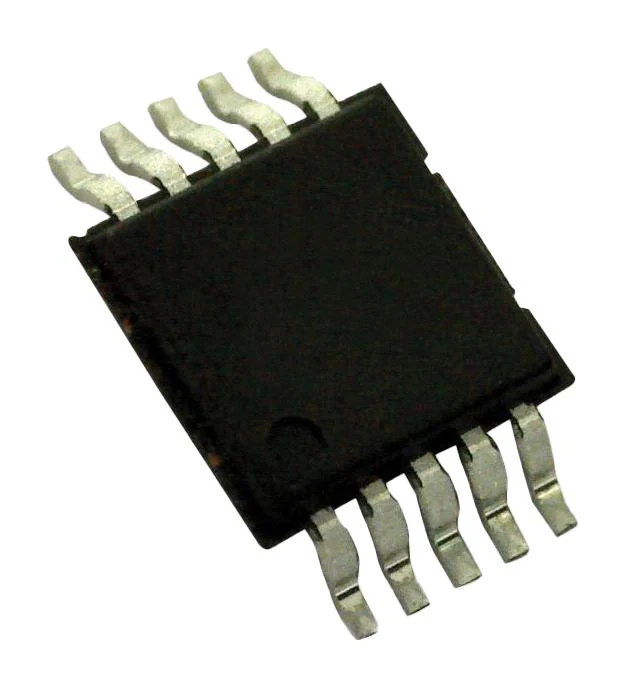

• 10 lead MSOP package
• Operating temperature range from 0°C to 70°C

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
