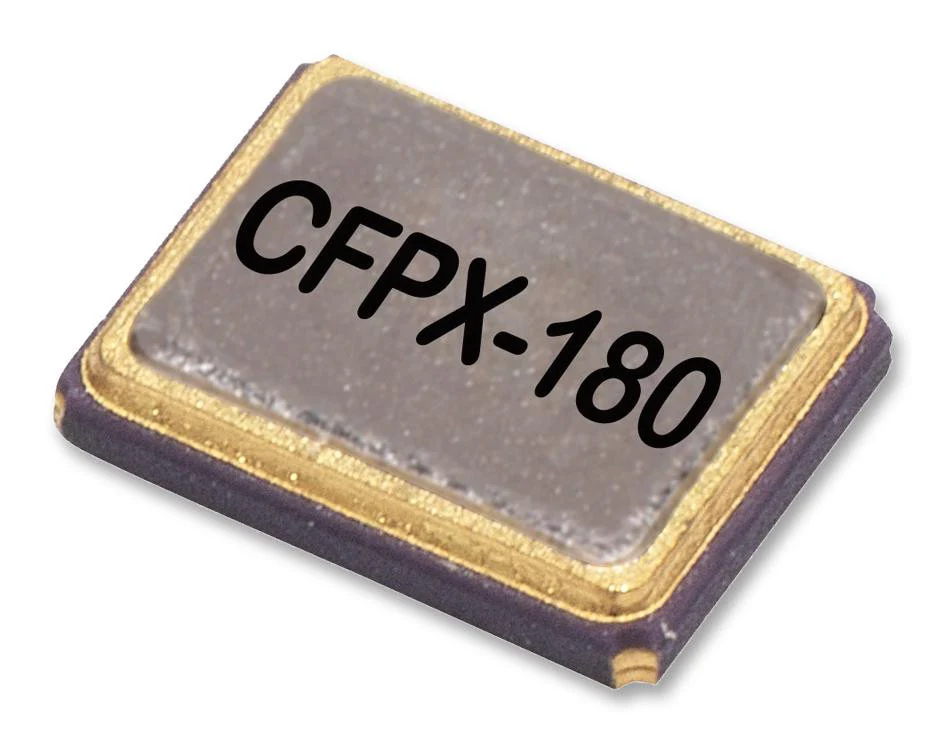

IQD FREQUENCY PRODUCTS LFXTAL053099 Crystal, 27.12 MHz, SMD, 3.2mm x 2.5mm, 10 ppm, 10 pF, 10 ppm, CFPX-180 Series
IQD FREQUENCY PRODUCTS LFXTAL053099 Crystal, 27.12 MHz, SMD, 3.2mm x 2.5mm, 10 ppm, 10 pF, 10 ppm, CFPX-180 Series
- Fundamental overtone order
- 100R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 100ĀµW Maximum drive level
Applications
Clock & Timing, Aerospace, Defence, Military
Product details
| Load Capacitance | 10pF |
| Operating Temperature Min | -20Ā°C |
| Operating Temperature Max | 70Ā°C |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Product Range | CFPX-180 Series |
| Frequency Stability + / - | 10ppm |
| Frequency Tolerance + / - | 10ppm |
| Frequency Nom | 27.12MHz |
Other details
| Brand | IQD FREQUENCY PRODUCTS |
| Part Number | LFXTAL053099 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
